Agricultural Digging Machine New Crawler Mini Excavator Farm Used Small Digger For Sale

Introductions Of Mini Crawler Excavators Maximum Excavation Depth 1400mm Small Digger

Mini excavators, also known as compact excavators or mini diggers, are small-sized hydraulic excavating machines commonly used in construction, landscaping, and utility work. They are designed to perform tasks in confined spaces or areas with limited access, where larger excavators cannot operate effectively.

Transportability: The compact size of mini excavators makes them easier to transport from one job site to another. They can be loaded onto trailers, transported on trucks, or even lifted onto elevated areas using cranes or other lifting equipment.

Fuel Efficiency and Environmental Considerations: Mini excavators are designed to be fuel-efficient, which helps reduce operational costs and minimize environmental impact. Many modern models feature advanced engine technologies that comply with emission regulations while still delivering optimal performance.

Safety Features: Mini excavators come equipped with various safety features to protect operators and bystanders. These can include features such as ROPS (Roll-Over Protective Structure), FOPS (Falling Object Protective Structure), travel alarms, rearview cameras, and reinforced operator cabins.

Maintenance and Serviceability: Mini excavators are designed for ease of maintenance and service. Components are easily accessible for inspection and repairs, and routine maintenance tasks can be performed relatively quickly.

Cost-Effectiveness: Mini excavators are a cost-effective option for small-scale projects. They offer the advantages of a versatile excavating machine at a lower price point compared to larger excavators. Their compact size and efficiency contribute to reduced fuel consumption and labor costs.

Overall, mini excavators are highly versatile and efficient machines that excel in confined spaces. Their compact size, maneuverability, and range of attachments make them indispensable tools for a wide range of construction, landscaping, and utility projects.

Parameters Of Mini Crawler Excavators Maximum Excavation Depth 1400mm Small Digger

机型 尺寸(mm) 参数	Model Size(mm) Specification	ZM08	ZM09	ZM10A	ZM12	ZM13B	ZM15	ZM17	ZM18	ZM23	ZM25
重量(KG)	Weight (KG)	665	680	775	790	1000(with shed)	1500	1125	1285	1800	2500
运输长度	Transport Length	2600	2500	2200	2200	2960	2350	2420	2600	2360	3500
木箱长度a	Package Length (a)	2800	2700	2800	2800	-	2890	2955	3360	3560	4400
总宽度b	Total Width (b)	720	720	925	925	925	1100	1110	1300	990/1330	1300
总高度c	Total Height (c)	2000	2000	2000/2175	2000/2175	2220	2240	2215	2344	2405	2300
转台宽度d	Turntable Width (d)	700	700	805	805	-	990	940	1050	996	1200
底盘总宽e	Chassis Total Width (e)	720	720	925	925	-	1100	1110	1300	990	1300
履带宽度f	Track Width (f)	150	150	180	180	180	180	180	180	230	230
轮距g	Wheelbase (g)	860	860	906	906	915	1082	1082	1082	1230	1526
轨距h	Track Gauge (h)	550	550	742	742	-	895	895.5	1120	760/1070	1040
平台离地间隙i	Platform Ground Clearance (i)	350	350	370	370	370	400	400	400	435	570
最低离地间隙j	Min. Ground Clearance (j)	100	100	127	127	-	140	140	145	145	240
最大挖掘高度A	Max. Digging Height (A)	2460	2800	2500	2500	2885	2690	2565	2880	3535	3200
最大卸载高度B	Max. Unloading Height (B)	1730	1880	1700	1700	1974	1780	1670	2100	2445	2450
最大挖掘挖深C	Max. Excavation Depth (C)	900	960	1580	1580	1813	1715	1730	2150	2270	2350
最大垂直挖掘深度D	Max. Vertical Digging Depth (D)	340	430	1200	1200	-	1585	1600	1760	1910	1740
最大挖掘半径E	Max. Digging Radius (E)	2490	2330	2900	2900	2676	3150	3215	3330	3910	3100
最小回转半径F	Min. Rotation Radius (F)	1400	730	1450	1450	-	1587	1495	1555	1600	2300
标配发动机品牌	Standard Engine Brand	UP 192F	UP 192F	UP 192F	UP 192F	UP 192F /KOOP/Changchai/BGG/Kubota	Kubota D722	Laidong LL380B-116A"	Changchai 390Q	Kubota 902	Laidong LL385-216B
排放标准	Emission Standard	China II	China II	China II	China II	China II /Euro V	China IV /EPA Tier 4 /Euro V	China II	China II	EPA/CARB TiAl4/Eu StiPeV/China GB3	China II
发动机功率(KW)	Engine Power (KW)	8KW/3600rpm	8KW/3600rpm	8KW/3600rpm	8KW/3600rpm	7.5KW/3600rpm	10.2KW/2500rpm	19KW/2200rpm	20KW/2300rpm	11.8KW / 2300rpm	29KW/2350rpm
马力(HP)	Horsepower (HP)	11	11	11	11	10	15	26	27	16	40
伸缩侧摆	Telescopic Side Swing	—	—	customised	customised	-	Yes	—	—	Yes /chassis extension	Yes
标配挖斗(mm)	Bucket size	300	300	400	400	-	400	400	400	500	500
斗容(m³)	Bucket Capacity (m3)	0.02	0.02	0.025	0.025	0.025	0.023	0.3	0.035	0.04	0.05
驾驶室	Cab	—	—	3500	3500	-	4000	4000	4000	4500	4500
空调	Air Conditioning	—	—	2000	2000	-	2000	2000	2000	2500	2500
选配发动机	Optional Engine	Changchai,Kop,Bailitong,Lithium-ion battery,Electric motor				-	—	—	Laidong 385	Xin Chai 3B11	Changchai 390Q

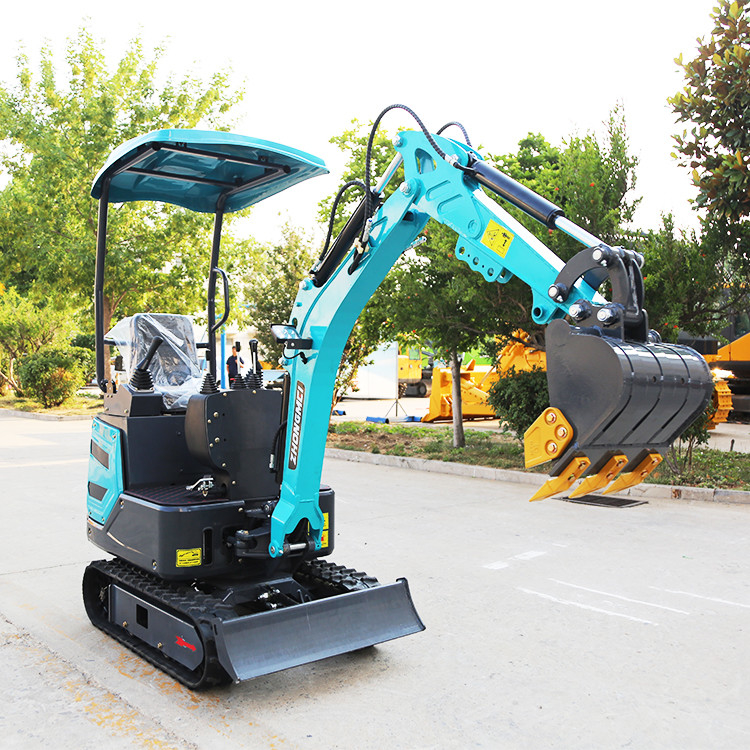

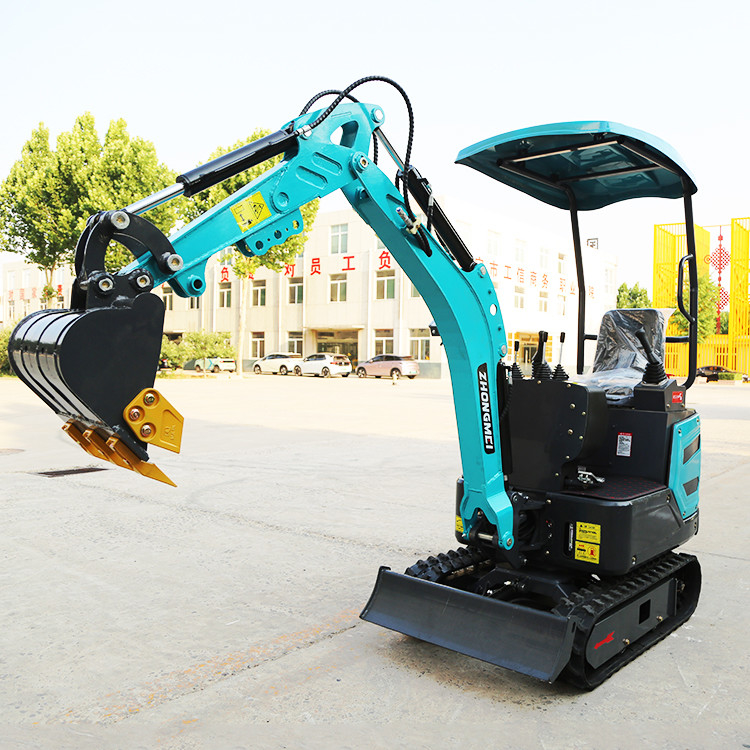

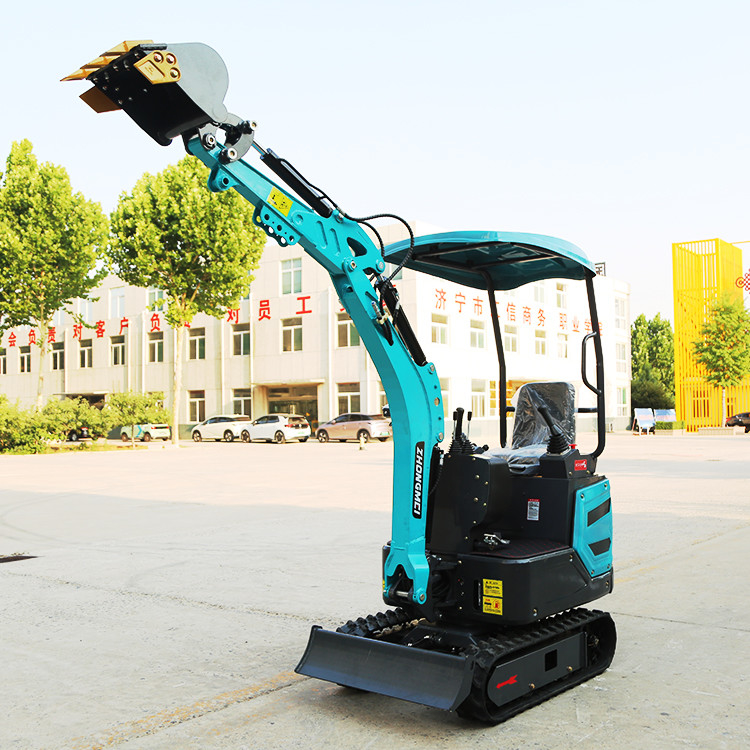

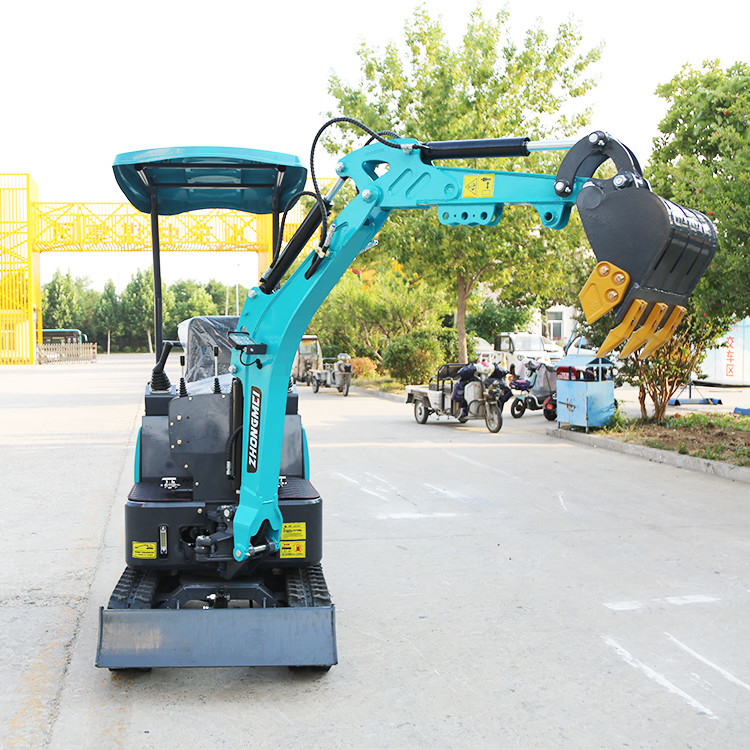

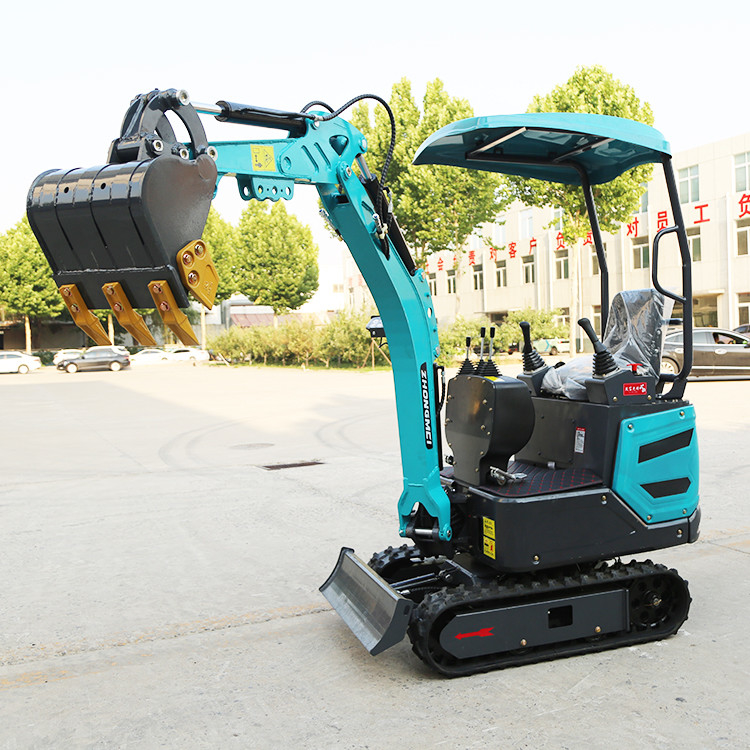

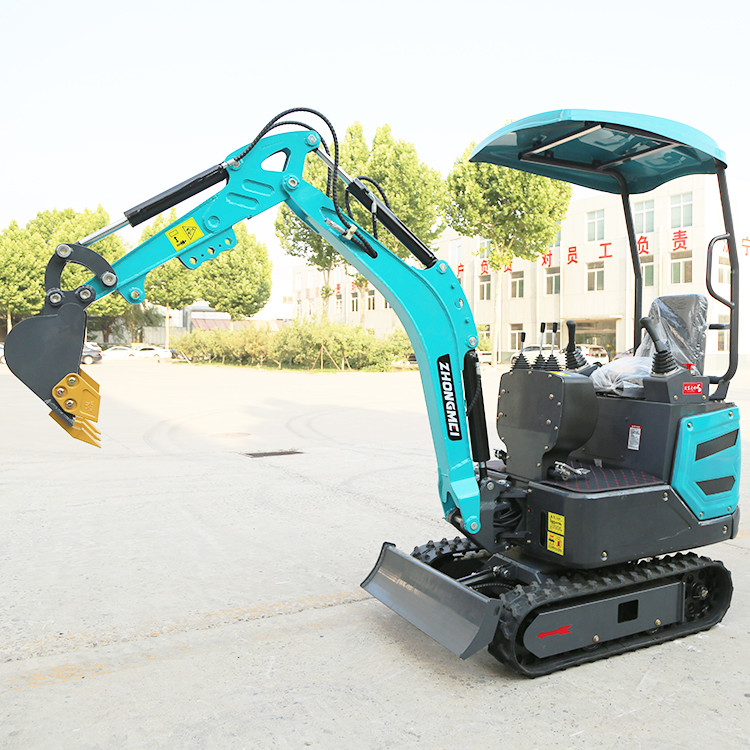

Photos Of Mini Crawler Excavators Maximum Excavation Depth 1400mm Small Digger
