Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE,EPA,ISO
Model Number:
ZM08
Contact Us
Size and Versatility: Mini excavators are compact in size and typically weigh between 1 and 10 tons. Their small footprint allows them to maneuver easily in tight spaces such as urban areas, residential yards, or interior spaces. Despite their size, mini excavators offer versatility in terms of the range of attachments they can accommodate, including buckets, augers, breakers, grapples, and more.
Excavation Capabilities: These machines are equipped with a hydraulically powered arm and bucket, which can be used for digging, trenching, grading, and lifting operations. Mini excavators can handle a variety of tasks, such as excavation for foundations, landscaping projects, utility line installations, digging trenches for pipelines, and clearing debris.
Enhanced Maneuverability: Mini excavators are known for their exceptional maneuverability. They typically have a zero or minimal tail swing design, which means that the rear end of the excavator stays within the width of the tracks or undercarriage during operation. This feature allows operators to work in tight spaces without worrying about the excavator's rear end swinging into obstacles.
Operator Comfort and Control: Despite their smaller size, mini excavators are designed to provide comfort and ergonomic controls for operators. The operator's station typically includes a seat with adjustable controls, joystick levers for precise movement, clear visibility, and often air conditioning for enhanced comfort during long working hours.
Rubber Tracks: Mini excavators are commonly equipped with rubber tracks, which offer several advantages. Rubber tracks minimize surface damage, provide improved traction, reduce noise levels, and enable operation on delicate surfaces such as asphalt or grass without causing significant damage.
Performance parameters | Specification | Size Range | Specification |
Vehicle weight | 700kg | Wheelbase | 420mm |
Standard Bucket Capacity | 0.02m3 | Track Ground Length | 1150mm |
Working device form | backhoe | Minimum Ground Clearance | 80mm |
Power | 9KW/12.5 hp | Chassis width | 730mm |
10KW/13.5 hp | |||
8.3KW/12 hp | |||
7.6KW/10 hp | |||
Maximum digging radius | 2050mm | Track Width | 150mm |
Maximum excavation depth | 1400mm | Shipping Length | 2200mm |
Maximum excavation height | 2350mm | Full Vehicle Height | 1880mm |
Maximum unloading height | 1600mm | Radius Of Gyration | 1100mm |
Multi-way valve | Imported from Japan | Hydraulic Pump | Imported from Italy |
Overall size | 2200mm*730mm*1880mm |

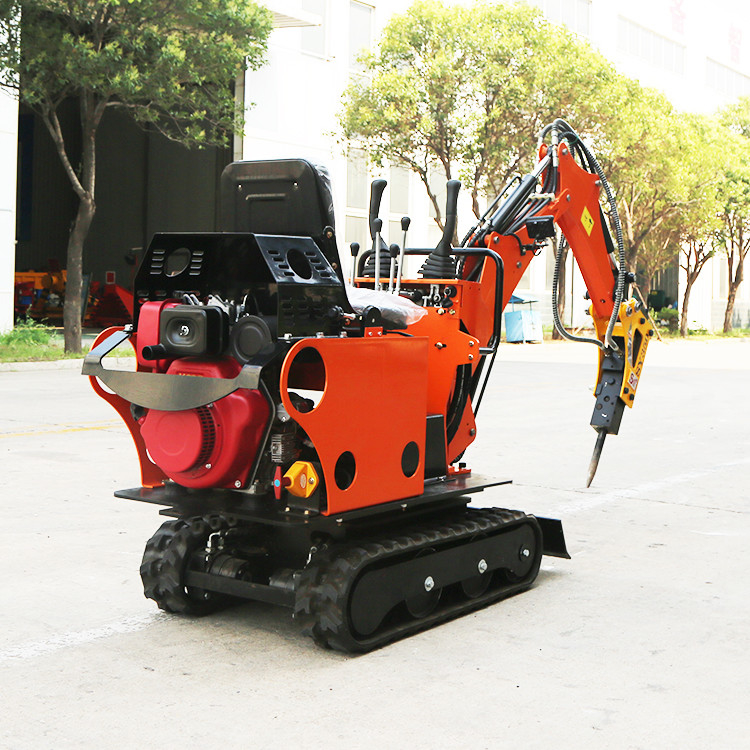

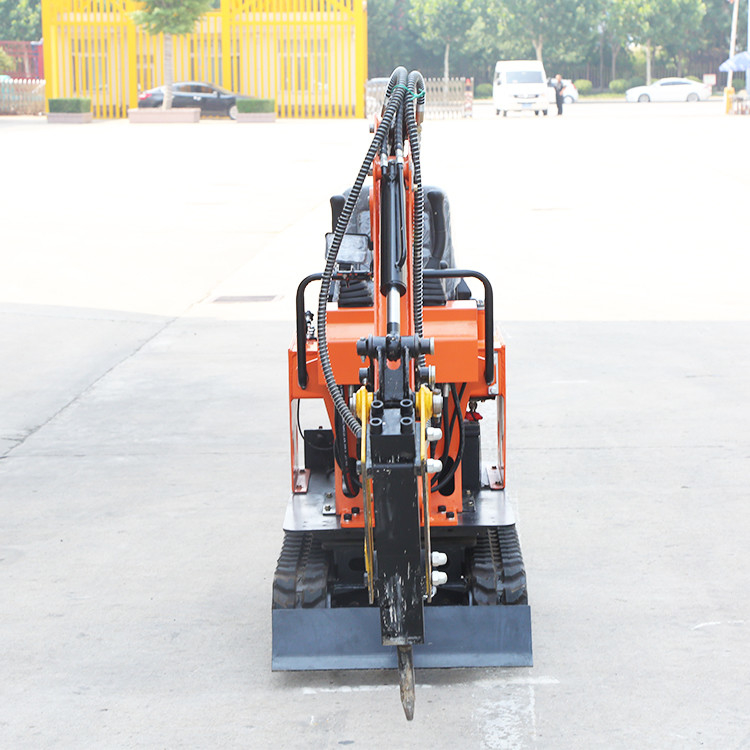

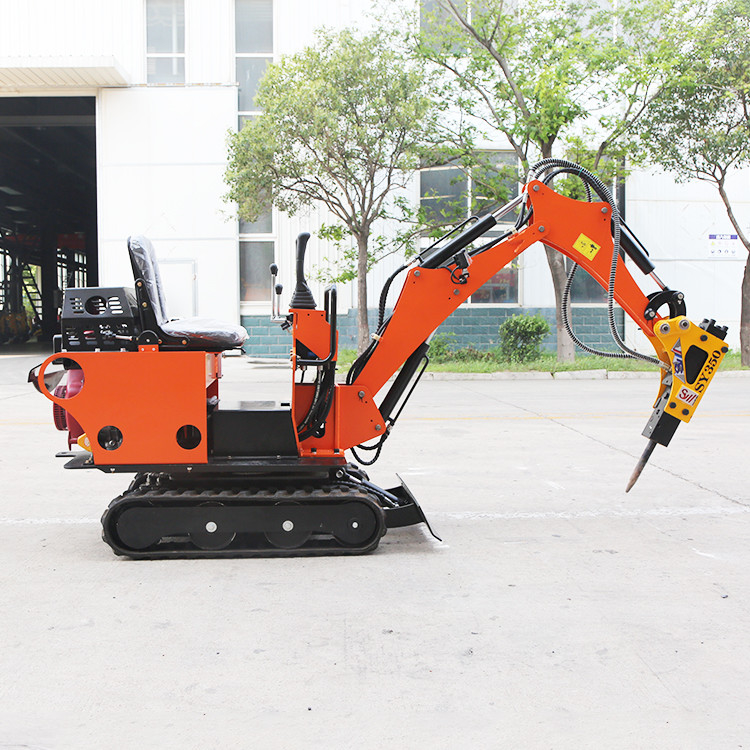

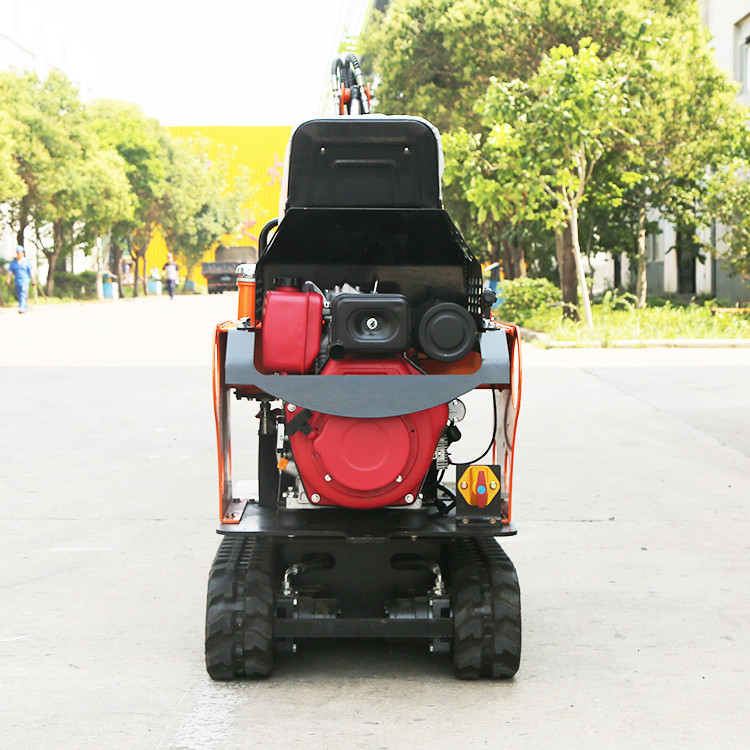

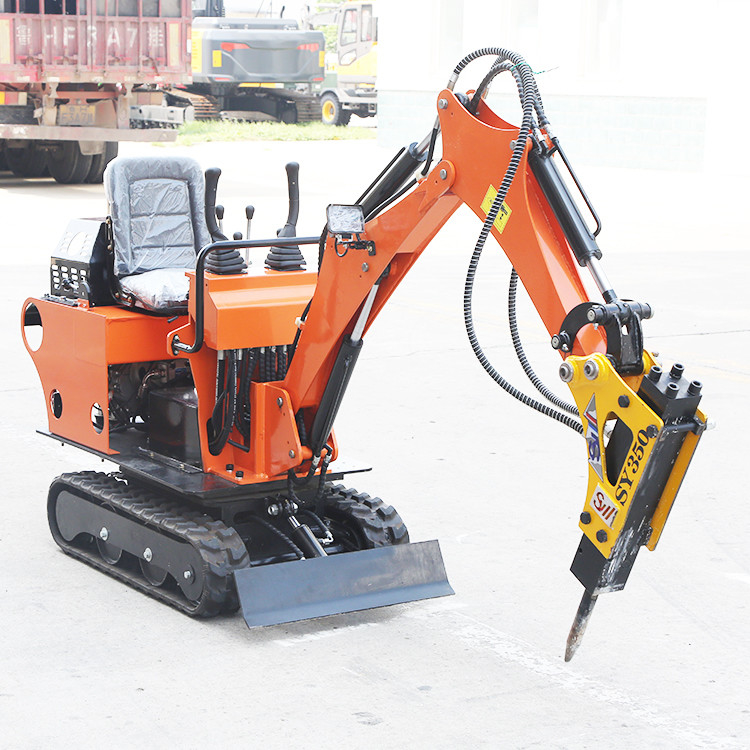

Photos Of High Fuel Efficiency 0.8 T Crawler Mounted Hydraulic Excavator Mini Garden Digger
