Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO
Model Number:
ZM08
Contact Us
Video
Video
Mini excavators, also known as compact excavators or mini diggers, are small-sized hydraulic excavating machines commonly used in construction, landscaping, and utility work. They are designed to perform tasks in confined spaces or areas with limited access, where larger excavators cannot operate effectively.
Transportability: The compact size of mini excavators makes them easier to transport from one job site to another. They can be loaded onto trailers, transported on trucks, or even lifted onto elevated areas using cranes or other lifting equipment.
Fuel Efficiency and Environmental Considerations: Mini excavators are designed to be fuel-efficient, which helps reduce operational costs and minimize environmental impact. Many modern models feature advanced engine technologies that comply with emission regulations while still delivering optimal performance.
Safety Features: Mini excavators come equipped with various safety features to protect operators and bystanders. These can include features such as ROPS (Roll-Over Protective Structure), FOPS (Falling Object Protective Structure), travel alarms, rearview cameras, and reinforced operator cabins.
Maintenance and Serviceability: Mini excavators are designed for ease of maintenance and service. Components are easily accessible for inspection and repairs, and routine maintenance tasks can be performed relatively quickly.
Cost-Effectiveness: Mini excavators are a cost-effective option for small-scale projects. They offer the advantages of a versatile excavating machine at a lower price point compared to larger excavators. Their compact size and efficiency contribute to reduced fuel consumption and labor costs.
Overall, mini excavators are highly versatile and efficient machines that excel in confined spaces. Their compact size, maneuverability, and range of attachments make them indispensable tools for a wide range of construction, landscaping, and utility projects.
| Performance parameters | Specification | Size Range | Specification |
| Vehicle weight | 700kg | Wheelbase | 420mm |
| Standard Bucket Capacity | 0.02m3 | Track Ground Length | 1150mm |
| Working device form | backhoe | Minimum Ground Clearance | 80mm |
| Power | 9KW/12.5 hp | Chassis width | 730mm |
| 10KW/13.5 hp | |||
| 8.3KW/12 hp | |||
| 7.6KW/10 hp | |||
| Maximum digging radius | 2050mm | Track Width | 150mm |
| Maximum excavation depth | 1400mm | Shipping Length | 2200mm |
| Maximum excavation height | 2350mm | Full Vehicle Height | 1880mm |
| Maximum unloading height | 1600mm | Radius Of Gyration | 1100mm |
| Multi-way valve | Imported from Japan | Hydraulic Pump | Imported from Italy |
| Overall size | 2200mm*730mm*1880mm | ||

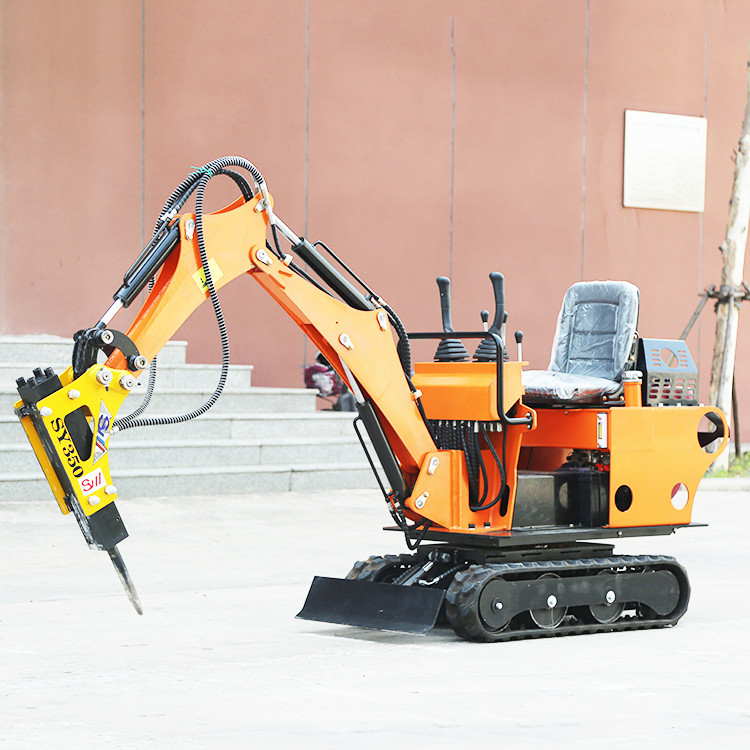

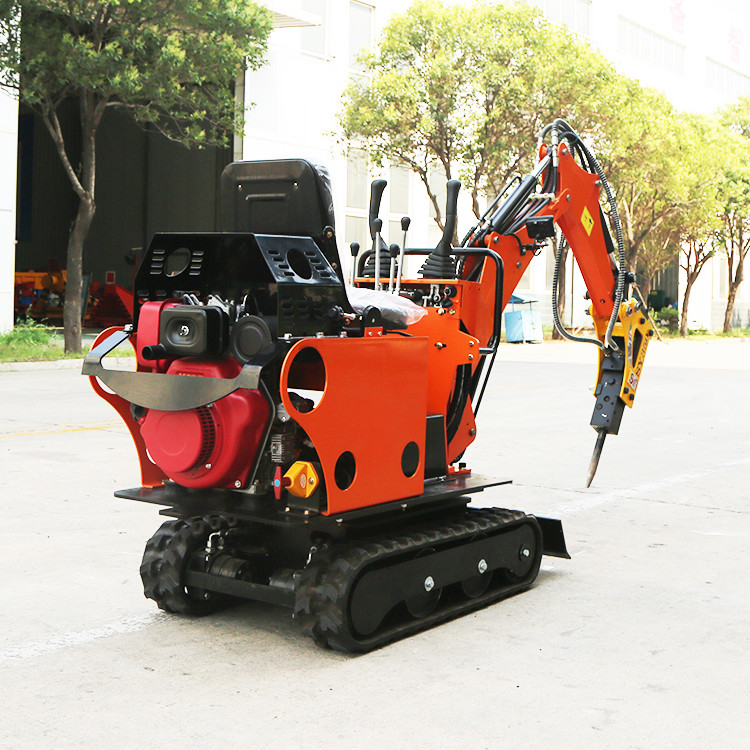

Photos Of 0.8 Ton Mini Crawler Excavators Maximum Excavation Depth 1400mm Small Digger
