Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO
Model Number:
ZM08
Contact Us
Video
Video
Mini excavators, also known as compact excavators or mini diggers, are small-sized hydraulic excavating machines commonly used in construction, landscaping, and utility work. They are designed to perform tasks in confined spaces or areas with limited access, where larger excavators cannot operate effectively.
ZM08 mini digger is a mini excavator manufactured for domestic modern and scientific production, which is suitable for various working environments instead of labor occasions. The main users are orchard trenching, landscaping, cable ducts, mountain planting, greenhouse vegetables, farmland transformation, basement, concrete breaking and other narrow spaces. The equipment adopts imported engine and mechanical operation. The ergonomically optimized joystick makes it more convenient and comfortable for the driver to operate.
Size and Versatility: Mini excavators are compact in size and typically weigh between 1 and 10 tons. Their small footprint allows them to maneuver easily in tight spaces such as urban areas, residential yards, or interior spaces. Despite their size, mini excavators offer versatility in terms of the range of attachments they can accommodate, including buckets, augers, breakers, grapples, and more.
Excavation Capabilities: These machines are equipped with a hydraulically powered arm and bucket, which can be used for digging, trenching, grading, and lifting operations. Mini excavators can handle a variety of tasks, such as excavation for foundations, landscaping projects, utility line installations, digging trenches for pipelines, and clearing debris.
Enhanced Maneuverability: Mini excavators are known for their exceptional maneuverability. They typically have a zero or minimal tail swing design, which means that the rear end of the excavator stays within the width of the tracks or undercarriage during operation. This feature allows operators to work in tight spaces without worrying about the excavator's rear end swinging into obstacles.
| Performance parameters | Specification | Size Range | Specification |
| Vehicle weight | 700kg | Wheelbase | 420mm |
| Standard Bucket Capacity | 0.02m3 | Track Ground Length | 1150mm |
| Working device form | backhoe | Minimum Ground Clearance | 80mm |
| Power | 9KW/12.5 hp | Chassis width | 730mm |
| 10KW/13.5 hp | |||
| 8.3KW/12 hp | |||
| 7.6KW/10 hp | |||
| Maximum digging radius | 2050mm | Track Width | 150mm |
| Maximum excavation depth | 1400mm | Shipping Length | 2200mm |
| Maximum excavation height | 2350mm | Full Vehicle Height | 1880mm |
| Maximum unloading height | 1600mm | Radius Of Gyration | 1100mm |
| Multi-way valve | Imported from Japan | Hydraulic Pump | Imported from Italy |
| Overall size | 2200mm*730mm*1880mm | ||

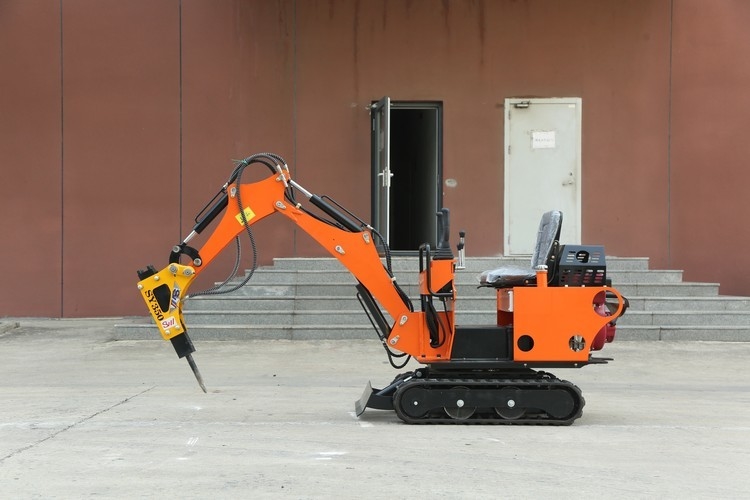

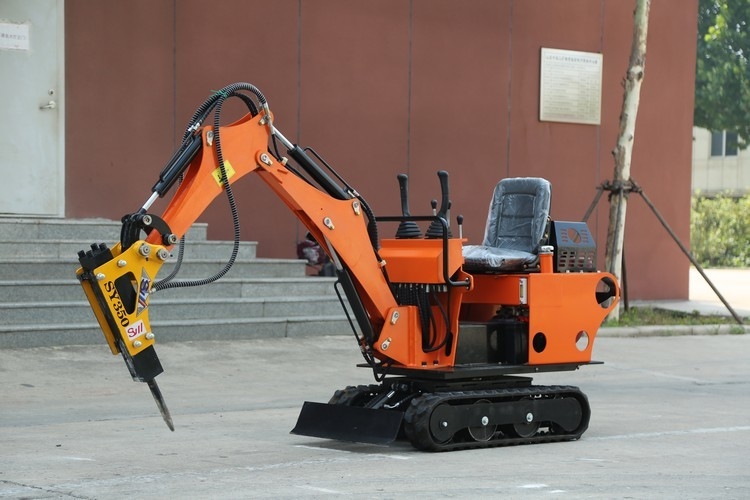

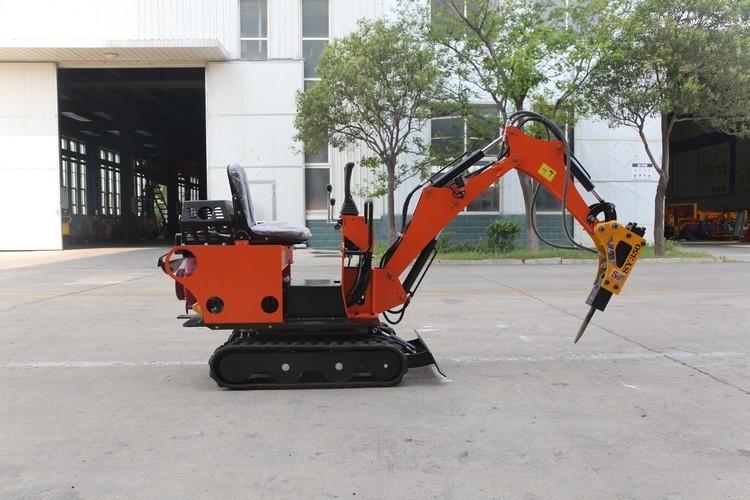

Photos Of Garden Repair 0.8t Mini Excavator Manufacturer ZHONGMEI Small Micro Digger
