Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM17
Contact Us
Welcome to our website, where we proudly present our exceptional line of mini excavators. Our mini excavators are designed and built with precision to provide outstanding performance, versatility and durability for all your excavation needs.
Introducing the Powerhouse of Precision: Small Excavators Designed for Efficiency and Performance!
Unleash Your Productivity: Our small excavators are engineered to tackle any job with unmatched precision and efficiency. Get ready to experience a new level of productivity on your worksite.
Compact Yet Mighty: Don't let their size fool you! Our small excavators pack a powerful punch, effortlessly maneuvering through tight spaces while delivering exceptional digging power and lifting capacity.
Unmatched Versatility: From digging trenches to landscaping projects, our small excavators are your ultimate versatile companion. With a wide range of attachments available, you can conquer any task, no matter how diverse.
Fuel Your Success: Our small excavators are designed with fuel efficiency in mind, minimizing downtime and reducing operating costs. Experience longer working hours without compromising on performance.
Operator-Focused Design: We understand the importance of comfort and control. That's why our small excavators boast ergonomic cabins, intuitive controls, and advanced technology, ensuring a fatigue-free and productive working environment.
With our cutting-edge technology and unwavering commitment to quality, we guarantee a powerful and versatile lineup of small excavators that will exceed your expectations.
Don't miss out on the opportunity to revolutionize your worksite. Contact us today and unlock the true potential of our small excavators!

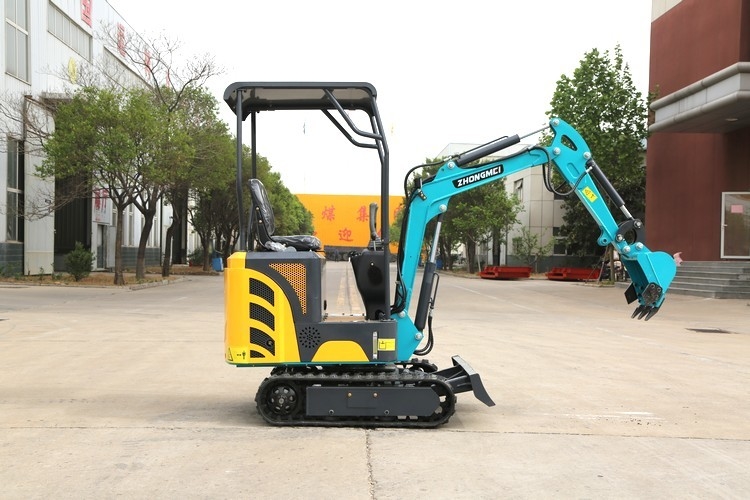

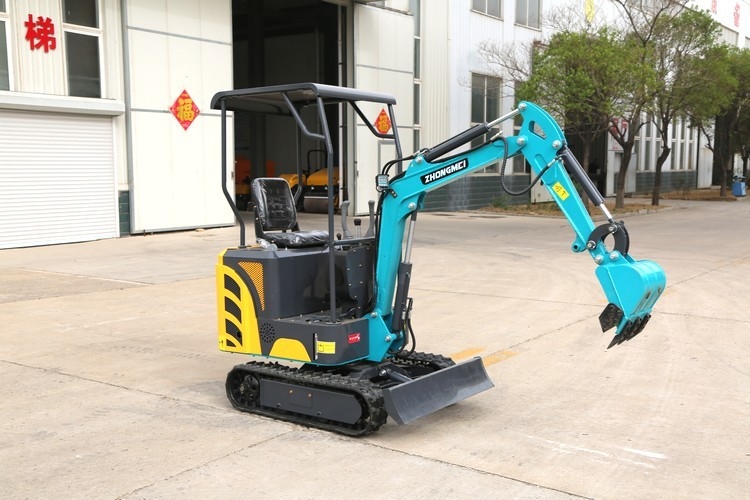

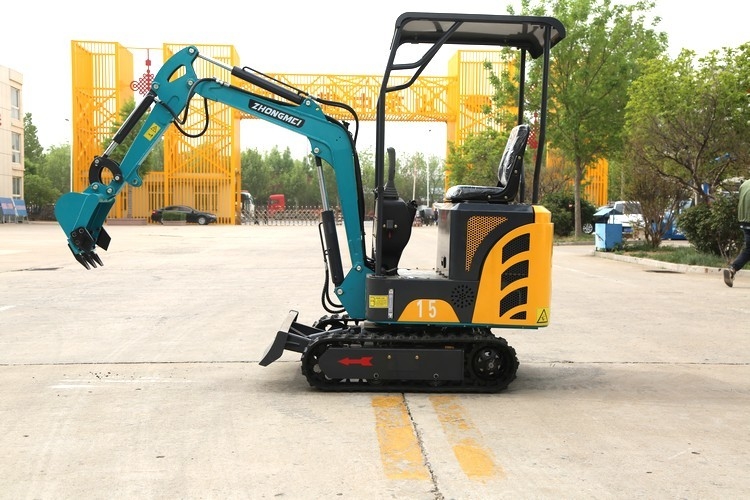

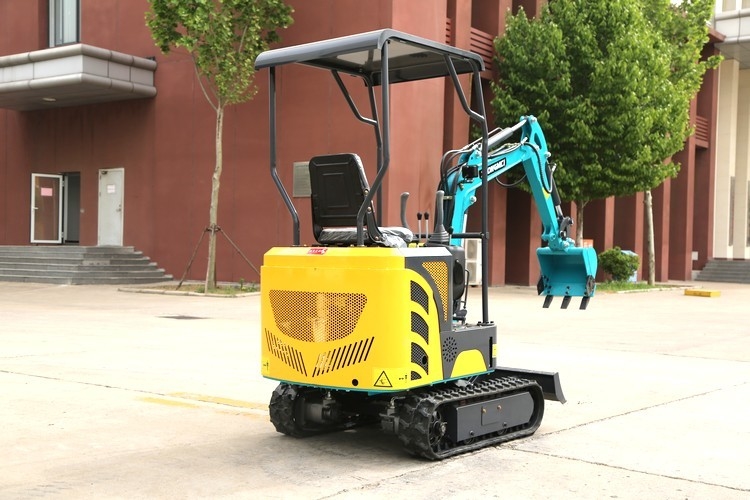

| ZM17 Mini Excavator | |||||
| Overall dimensions | Scope of work | Complete machine configuration | |||
| Total length | 3300mm | Maximum excavation height | 2900mm | Work quality | 1680KG |
| Overall width | 1110mm | Maximum unloading height | 1850mm | engine | Laidong |
| Total height | 1520mm | Maximum excavation depth | 2100mm | emission standard | Country III |
| Track width | 1082mm | Maximum excavation radius | 3300mm | Engine model | KM385BN |
| Platform ground clearance | 370mm | Stick digging force | Engine power | 17.7KW/3300rpm | |
| track width | 180mm | Bucket digging force | Fuel tank volume | 15.5L | |
| Track Height | 330mm | Minimum turning radius of tail | 1600mm | Main pump displacement | 12/3mL/r |
| Transportation length | 2800mm | Bucket volume | 0.03m³ | Hydraulic oil tank volume | 17L |
| Maximum lifting height of bulldozer blade | 150mm | Travel speed | 4.5km/h | working pressure | 16MPa |
| Maximum cleaning depth of bulldozer | 220mm | Gradeability | 45° | Mode of operation | Pilot operated operation |
