Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE,EPA,ISO,TUV
Model Number:
ZM15
Contact Us

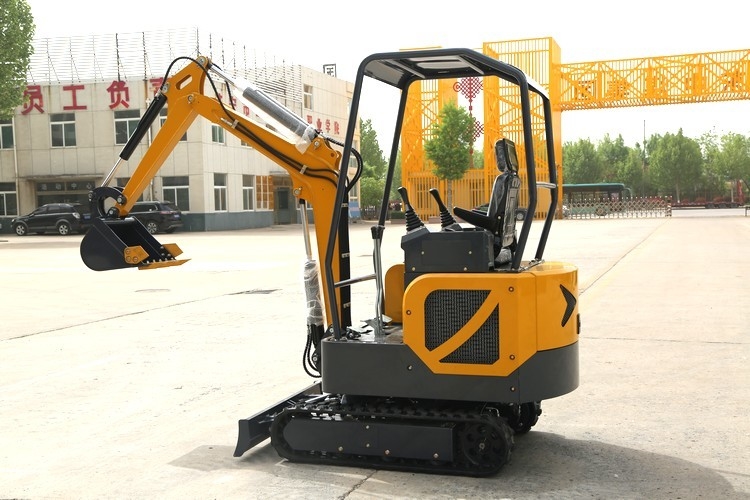

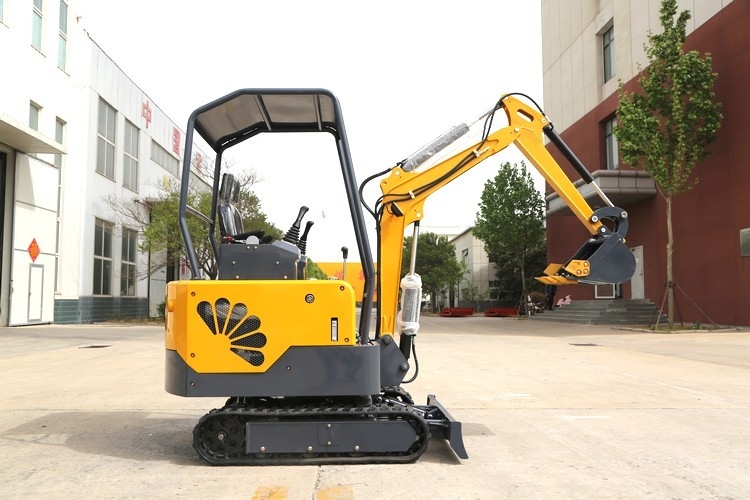

The 1.5-ton mini excavator is a compact and agile construction machine that offers exceptional versatility for a wide range of digging and excavation tasks. With its lightweight design, it is highly maneuverable and can easily navigate through tight spaces and confined job sites.
Equipped with a powerful engine and a hydraulic system, this mini excavator delivers reliable performance and precise control. It offers a maximum digging depth of [Insert digging depth] and a digging radius of [Insert digging radius], making it suitable for small-scale projects such as landscaping, residential construction, and utility installations.
Performance parameters |
Specification | Size range | Specification |
Vehicle weight | 1150kg | wheelbase | 420mm |
Standard Bucket Capacity | 0.03m3 | Track ground length | 1250mm |
Working device form | backhoe | Minimum ground clearance | 385mm |
Power | 9KW/12.5 hp 10KW/13.5 hp 8.3KW/12 hp 7.6KW/10 hp |
Chassis width | 1000mm |
Maximum digging radius | 2900mm | Track width | 180mm |
Maximum excavation depth | 1700mm | Shipping length | 2170mm |
Maximum excavation height | 2450mm | full vehicle height | 2200mm |
Maximum unloading height | 1850mm | radius of gyration | 1550mm |
Multi-way valve | Imported from Japan | hydraulic pump | Imported from Italy |
Overall size | 2170mm*1000mm*2200mm |
