Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM18
Contact Us

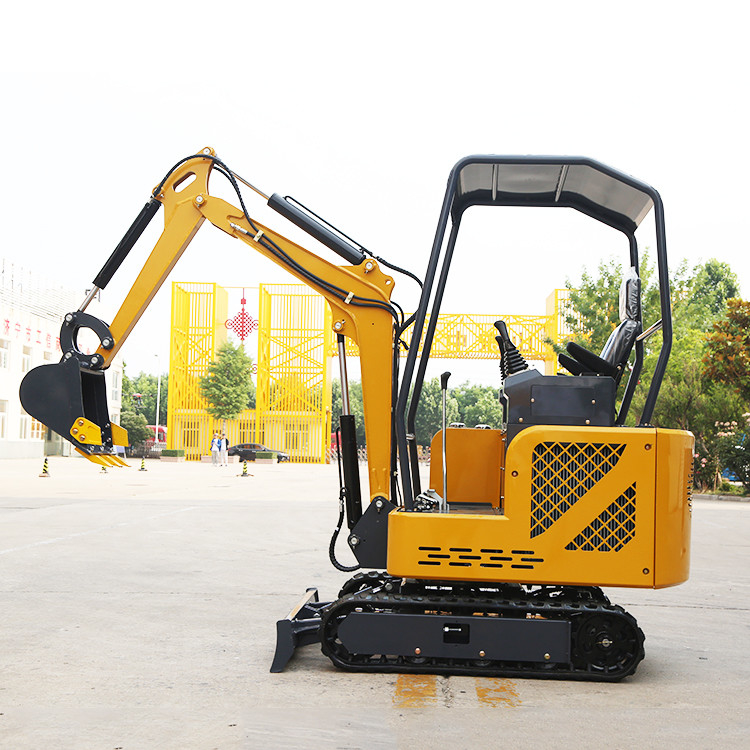

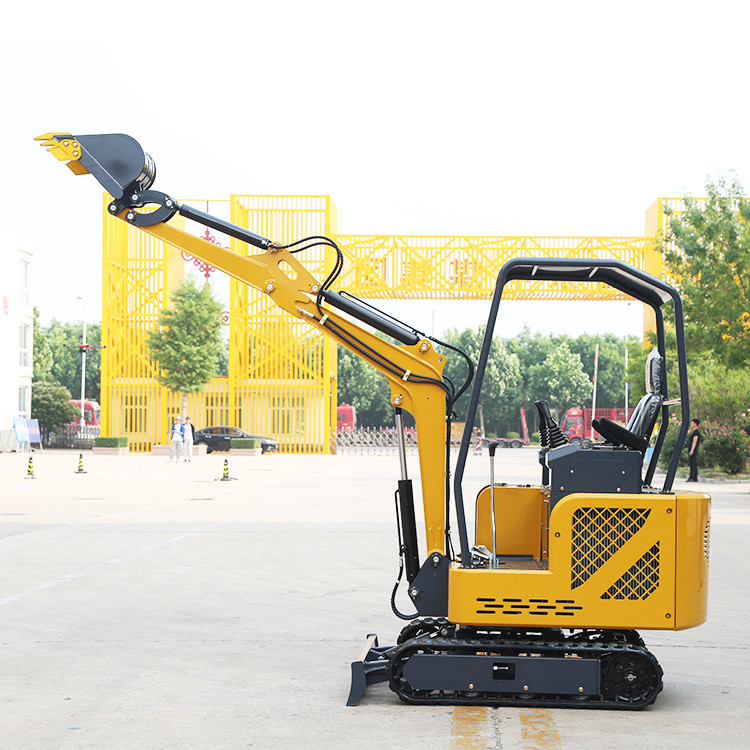

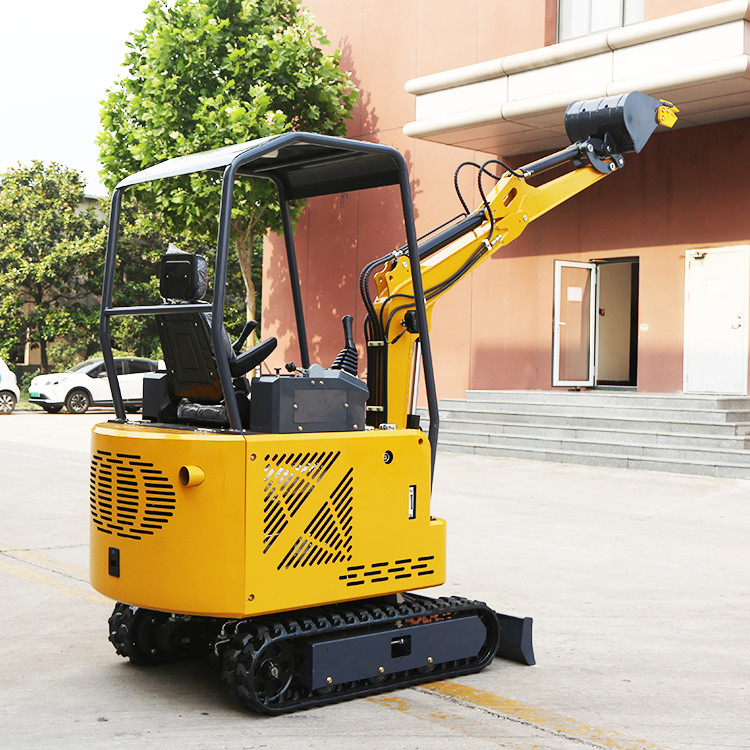

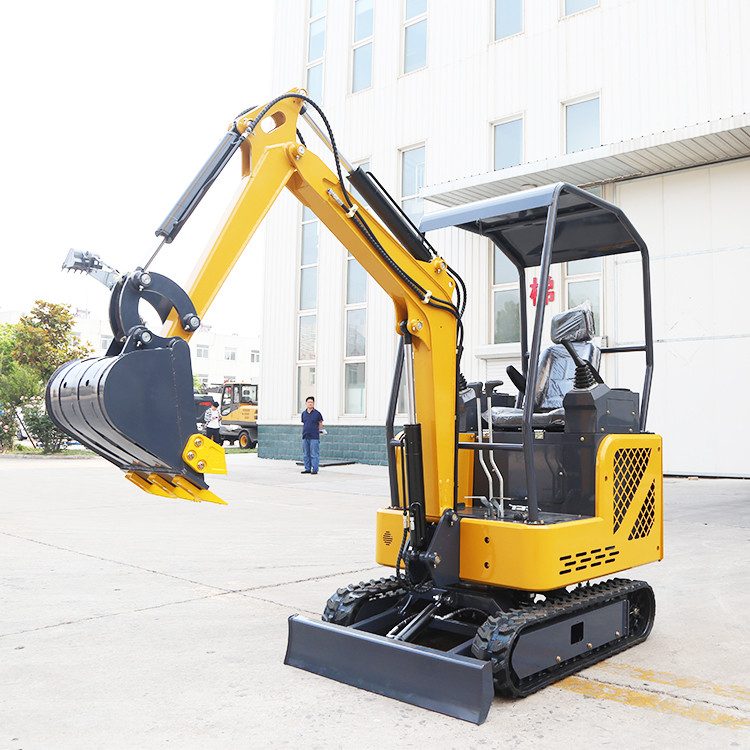

The 1.8-ton mini excavator is a versatile and compact construction machine designed for various digging and excavation tasks. With its lightweight design, it offers excellent maneuverability and easy transportation to different job sites.
Equipped with a powerful engine and advanced hydraulic system, this mini excavator delivers efficient performance and precise control. It offers a maximum digging depth of [Insert digging depth] and a digging radius of [Insert digging radius], making it suitable for small to medium-scale projects.
| ZM18 | |||||
| Overall dimensions | Scope of work | Complete machine configuration | |||
| Total length | 3300mm | Maximum excavation height | 2900mm | Work quality | 1680KG |
| Overall width | 1110mm | Maximum unloading height | 1850mm | engine | Changchai |
| Total height | 1520mm | Maximum excavation depth | 2100mm | emission standard | Country III |
| Track width | 1082mm | Maximum excavation radius | 3300mm | Engine model | 390 |
| Platform ground clearance | 370mm | Stick digging force | Engine power | 20KW/2200rpm | |
| track width | 180mm | Bucket digging force | Fuel tank volume | 15.5L | |
| Track Height | 330mm | Maximum digging force | Main pump displacement | 12/3mL/r | |
| Transportation length | 2800mm | Bucket volume | 0.03m³ | Hydraulic oil tank volume | 17L |
| Maximum lifting height of bulldozer blade | 150mm | Travel speed | 4.5km/h | working pressure | 16MPa |
| Maximum cleaning depth of bulldozer | 220mm | Gradeability | 45° | Mode of operation | Pilot operated operation |
| Minimum turning radius of tail | 1600mm | ||||
