Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE,EPA,ISO,TUV
Model Number:
ZM18
Contact Us

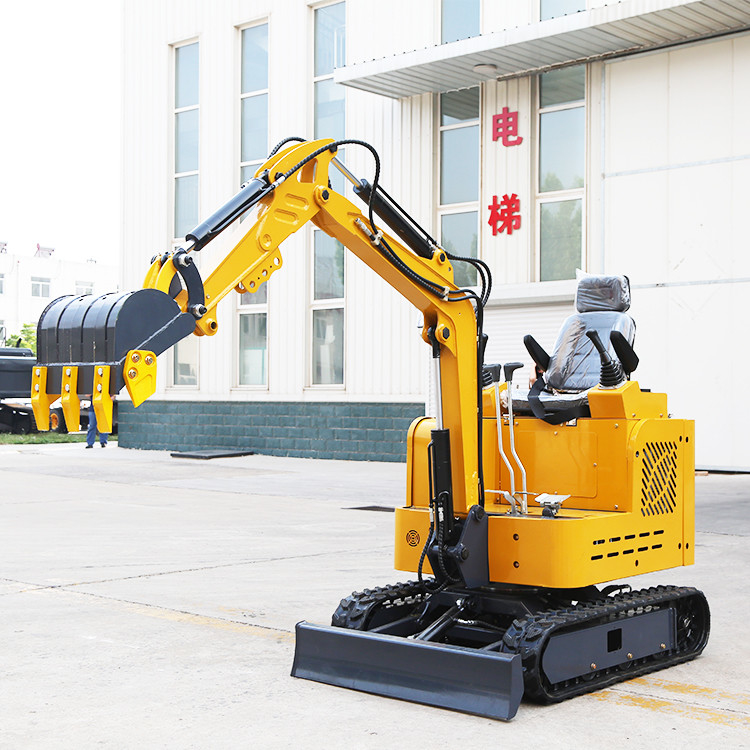

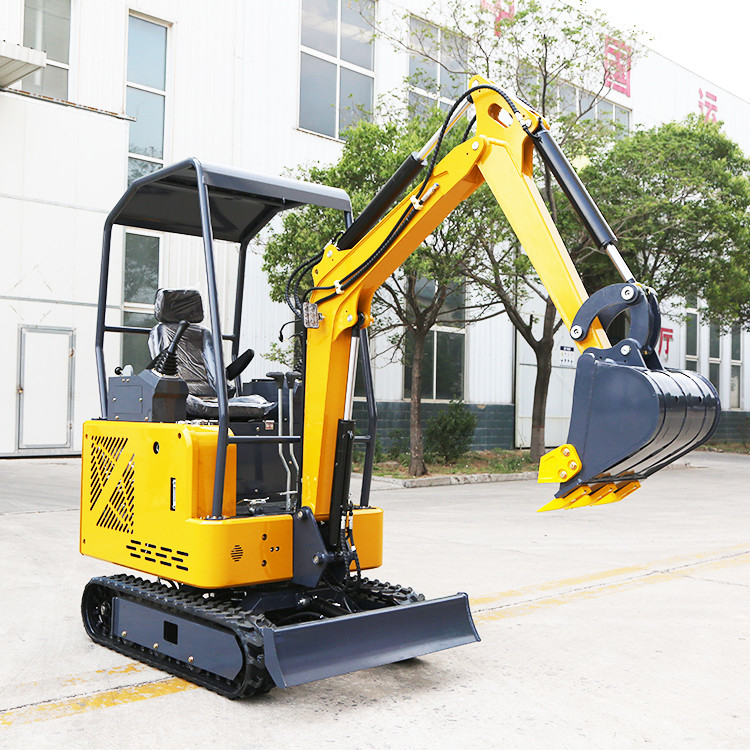

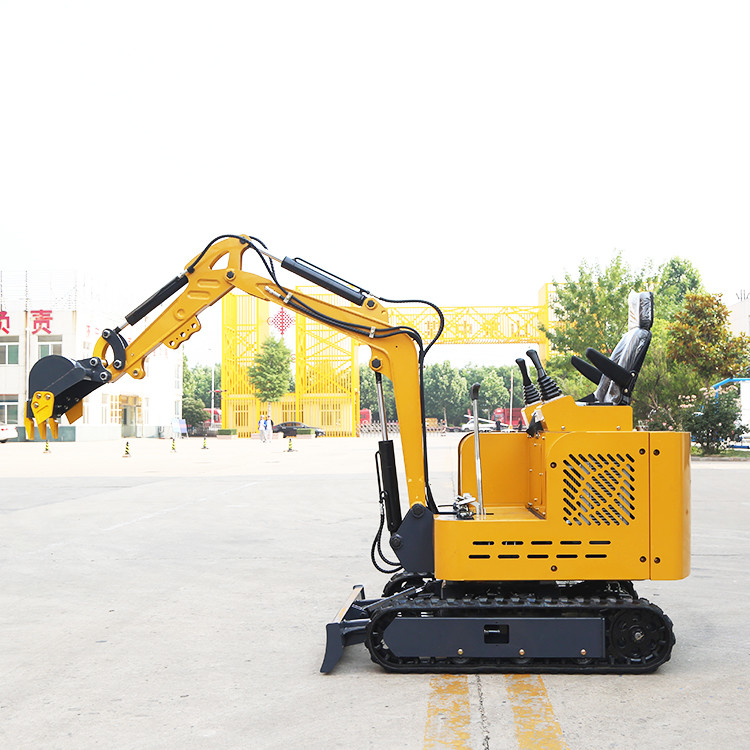

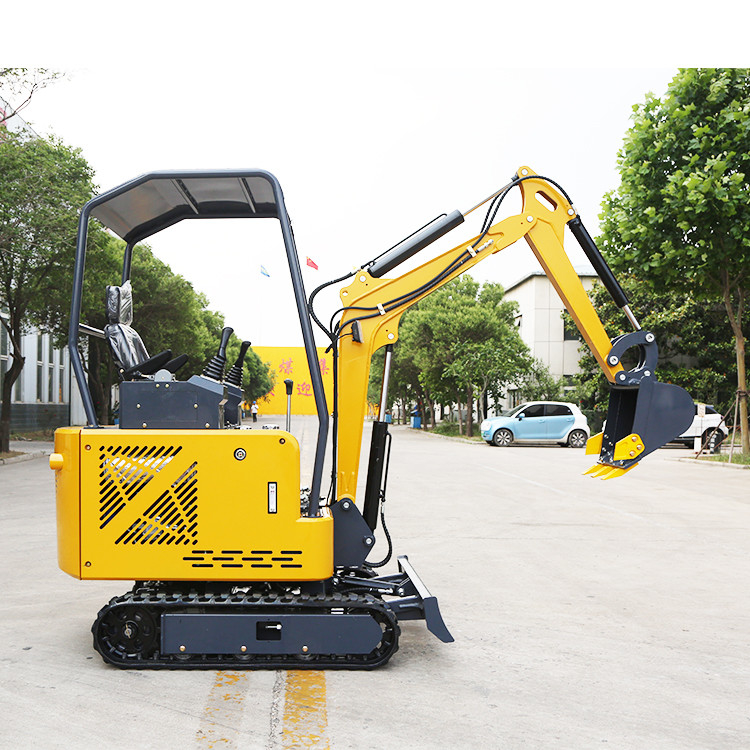

The 1.8-ton mini excavator is designed to excel in different working environments. Its compact size allows for operation in tight spaces, such as urban construction sites or landscaping projects. Additionally, its low ground pressure minimizes ground disturbance, making it suitable for working on delicate surfaces.
This mini excavator features durable components and is built to withstand demanding conditions, ensuring long-lasting performance. It is equipped with safety features and meets relevant industry standards.
Whether you need to dig trenches, excavate foundations, or perform landscaping tasks, the 1.8-ton mini excavator provides the power and versatility required for efficient operations. Its ease of operation and compact design make it an ideal choice for contractors, landscapers, and operators seeking a reliable and efficient digging solution.
ZM18 | |||||
Overall dimensions | Scope of work | Complete machine configuration | |||
Total length | 3300mm | Maximum excavation height | 2900mm | Work quality | 1680KG |
Overall width | 1110mm | Maximum unloading height | 1850mm | engine | Changchai |
Total height | 1520mm | Maximum excavation depth | 2100mm | emission standard | Country III |
Track width | 1082mm | Maximum excavation radius | 3300mm | Engine model | 390 |
Platform ground clearance | 370mm | Stick digging force | Engine power | 20KW/2200rpm | |
track width | 180mm | Bucket digging force | Fuel tank volume | 15.5L | |
Track Height | 330mm | Maximum digging force | Main pump displacement | 12/3mL/r | |
Transportation length | 2800mm | Bucket volume | 0.03m³ | Hydraulic oil tank volume | 17L |
Maximum lifting height of bulldozer blade | 150mm | Travel speed | 4.5km/h | working pressure | 16MPa |
Maximum cleaning depth of bulldozer | 220mm | Gradeability | 45° | Mode of operation | Pilot operated operation |
Minimum turning radius of tail | 1600mm |
