Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM12
Contact Us
Video
Video
Mini crawler excavators have simple structure and compact design ,easy in installation and maintation.
Controls are easy to use and operate. The operating instructions in front of the console are simple and easy to use.
Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.

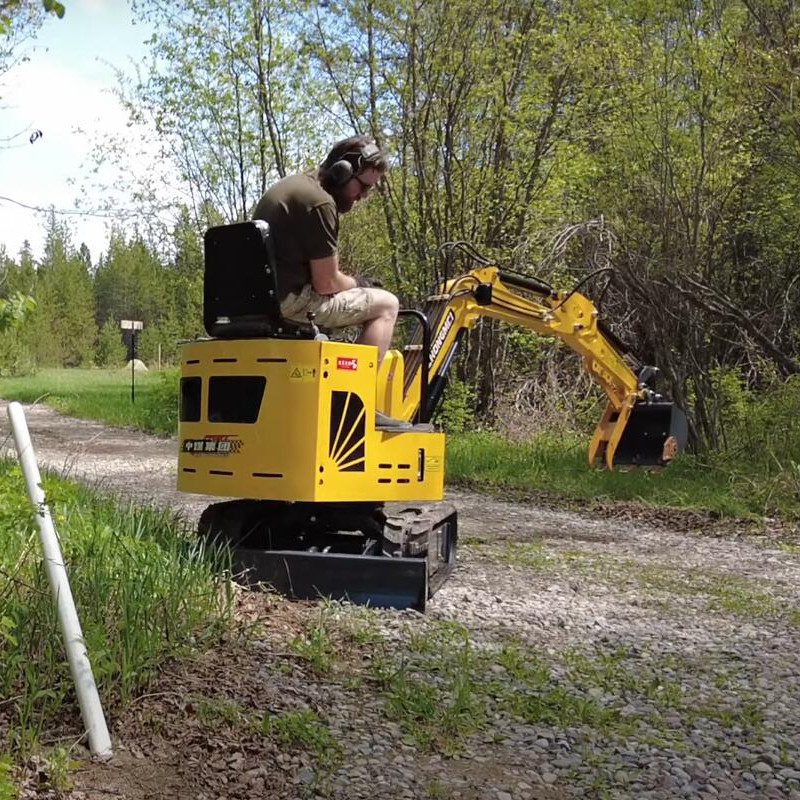

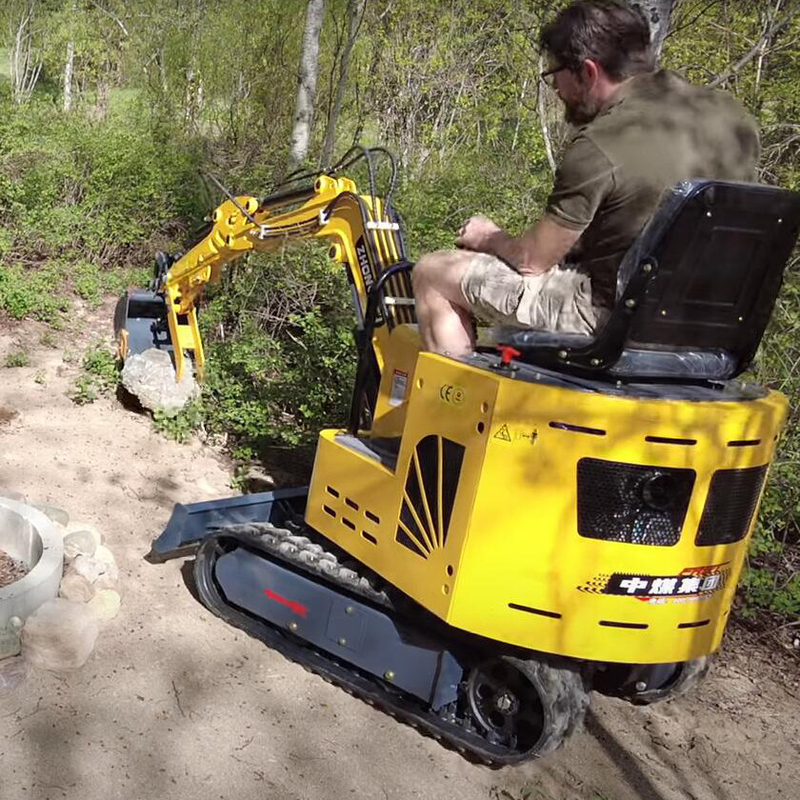

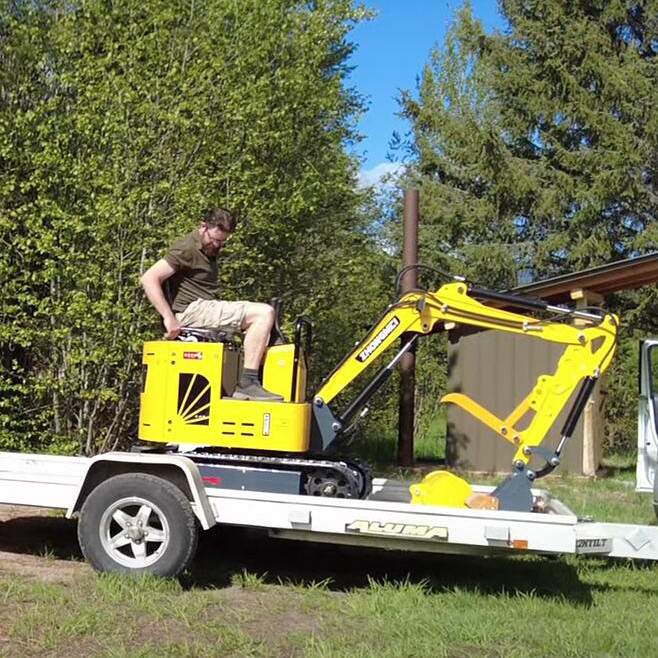

The excavadora is 1.2 ton chinese mini excavator ,it can 360 rotation. We still have a lot of wheel excavator.
Here are some key features and aspects of mini excavators:
Operator Comfort and Control: Despite their smaller size, mini excavators are designed to provide comfort and ergonomic controls for operators. The operator's station typically includes a seat with adjustable controls, joystick levers for precise movement, clear visibility, and often air conditioning for enhanced comfort during long working hours.
Rubber Tracks: Mini excavators are commonly equipped with rubber tracks, which offer several advantages. Rubber tracks minimize surface damage, provide improved traction, reduce noise levels, and enable operation on delicate surfaces such as asphalt or grass without causing significant damage.
Maintenance and Serviceability: Mini diggers are designed for ease of maintenance and service. Components are easily accessible for inspection and repairs, and routine maintenance tasks can be performed relatively quickly.
Overall, mini excavators are highly versatile and efficient machines that excel in confined spaces. Their compact size, maneuverability, and range of attachments make them indispensable tools for a wide range of construction, landscaping, and utility projects.
| ZM12 Mini Excavator | |||||
| Overall dimensions | Scope of work | Complete machine configuration | |||
| Total length | 2770mm | Maximum excavation height | 2620mm | Work quality | 0.85T |
| Overall width | 920mm | Maximum unloading height | 1820mm | Engine | Youpu, Science Popularization, Changchai, Bailitong |
| Total height | 1520mm | Maximum excavation depth | 1700mm | Emission standard | China II, Europe V |
| Track width | 915mm | Maximum excavation radius | 2945mm | Engine model | 192F |
| Platform ground clearance | 370mm | Stick digging force | 4Kn | Engine power | 7.6KW/3000rpm |
| track width | 180mm | Bucket digging force | 6Kn | Fuel tank volume | 6L |
| Track Height | 320mm | Maximum digging force | 7Kn | Main pump displacement | 6.5mL/r |
| Transportation length | 2810mm | Bucket volume | 0.025m³ | Hydraulic oil tank volume | 13L |
| Maximum lifting height of bulldozer blade | 315mm | Travel speed | 2.5km/h | working pressure | 16MPa |
| Maximum cleaning depth of bulldozer | 265mm | Gradeability | 30° | Mode of operation | Connection and unloading operation |
| Minimum turning radius of tail | 1300mm | ||||
