Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM12
Contact Us
Video
Video
Mini crawler excavators have simple structure and compact design ,easy in installation and maintation.
Controls are easy to use and operate. The operating instructions in front of the console are simple and easy to use.

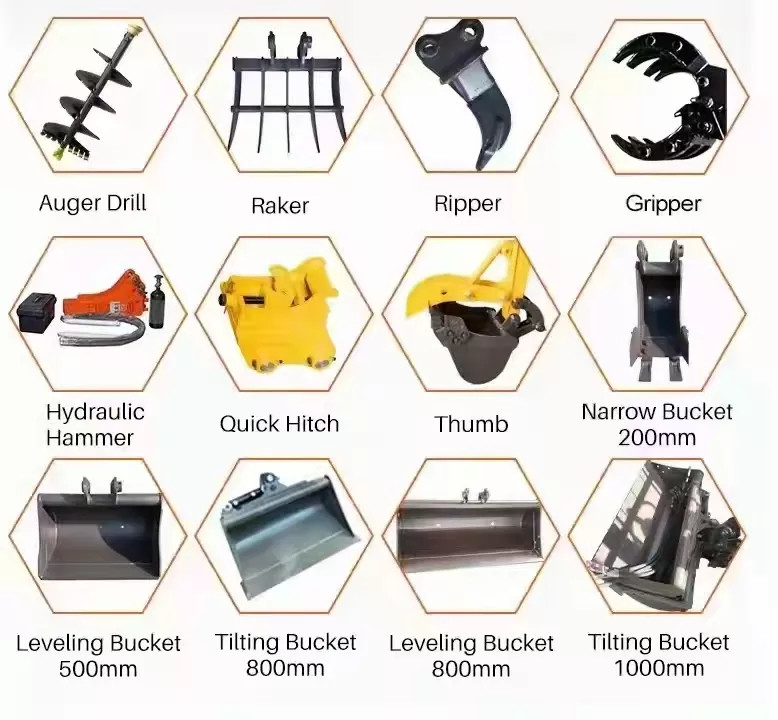

Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.
The excavadora is 1.2 ton chinese mini excavator ,it can 360 rotation. We still have a lot of wheel excavator.
Here are some key features and aspects of mini excavators:
Fuel Efficiency and Environmental Considerations: Mini excavators are designed to be fuel-efficient, which helps reduce operational costs and minimize environmental impact. Many modern models feature advanced engine technologies that comply with emission regulations while still delivering optimal performance.
Safety Features: Small excavators come equipped with various safety features to protect operators and bystanders. These can include features such as ROPS (Roll-Over Protective Structure), FOPS (Falling Object Protective Structure), travel alarms, rearview cameras, and reinforced operator cabins.
Maintenance and Serviceability: Mini diggers are designed for ease of maintenance and service. Components are easily accessible for inspection and repairs, and routine maintenance tasks can be performed relatively quickly.
Overall, mini excavators are highly versatile and efficient machines that excel in confined spaces. Their compact size, maneuverability, and range of attachments make them indispensable tools for a wide range of construction, landscaping, and utility projects.
| ZM12 Mini Excavator | |||||
| Overall dimensions | Scope of work | Complete machine configuration | |||
| Total length | 2770mm | Maximum excavation height | 2620mm | Work quality | 0.85T |
| Overall width | 920mm | Maximum unloading height | 1820mm | Engine | Youpu, Science Popularization, Changchai, Bailitong |
| Total height | 1520mm | Maximum excavation depth | 1700mm | Emission standard | China II, Europe V |
| Track width | 915mm | Maximum excavation radius | 2945mm | Engine model | 192F |
| Platform ground clearance | 370mm | Stick digging force | 4Kn | Engine power | 7.6KW/3000rpm |
| track width | 180mm | Bucket digging force | 6Kn | Fuel tank volume | 6L |
| Track Height | 320mm | Maximum digging force | 7Kn | Main pump displacement | 6.5mL/r |
| Transportation length | 2810mm | Bucket volume | 0.025m³ | Hydraulic oil tank volume | 13L |
| Maximum lifting height of bulldozer blade | 315mm | Travel speed | 2.5km/h | working pressure | 16MPa |
| Maximum cleaning depth of bulldozer | 265mm | Gradeability | 30° | Mode of operation | Connection and unloading operation |
| Minimum turning radius of tail | 1300mm | ||||
