Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger

Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger

Place of Origin:

shandong

Brand Name:

ZHONGMEI

Certification:

CE,EPA,ISO,TUV

Model Number:

ZM12

Contact Us

Request A Quote
Product Details
Name:
Mini Digger Excavator
Total Width:
920mm
Total Height:
1520mm
Wheelbase:
915mm
Platform Ground Clearance:
370mm
Track Width:
180mm
Track Height:
320mm
Payment & Shipping Terms
Minimum Order Quantity
1set
Delivery Time
5-8 day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Introductions Of Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger

Mini crawler excavators have simple structure and compact design ,easy in installation and maintation.



Controls are easy to use and operate. The operating instructions in front of the console are simple and easy to use.

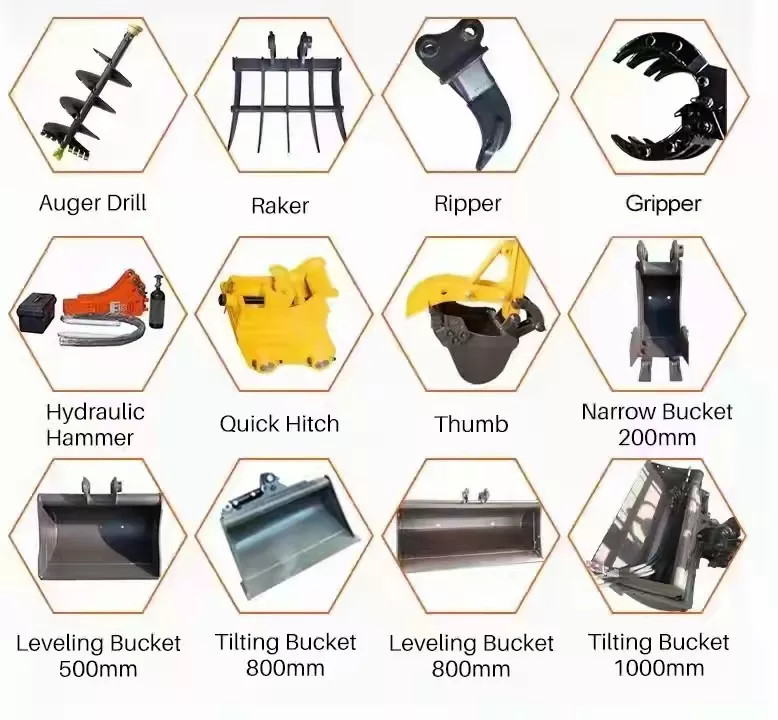

Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.



The excavadora is 1.2 ton chinese mini excavator ,it can 360 rotation. We still have a lot of wheel excavator.

Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 0Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 1Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 2

Here are some key features and aspects of mini excavators:



Size and Versatility: Mini excavators are compact in size and typically weigh between 1 and 10 tons. Their small footprint allows them to maneuver easily in tight spaces such as urban areas, residential yards, or interior spaces. Despite their size, mini excavators offer versatility in terms of the range of attachments they can accommodate, including buckets, augers, breakers, grapples, and more.



Excavation Capabilities: These machines are equipped with a hydraulically powered arm and bucket, which can be used for digging, trenching, grading, and lifting operations. Mini excavators can handle a variety of tasks, such as excavation for foundations, landscaping projects, utility line installations, digging trenches for pipelines, and clearing debris.



Enhanced Maneuverability: Mini excavators are known for their exceptional maneuverability. They typically have a zero or minimal tail swing design, which means that the rear end of the excavator stays within the width of the tracks or undercarriage during operation. This feature allows operators to work in tight spaces without worrying about the excavator's rear end swinging into obstacles.

Parameters Of Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger



ZM12 Mini Excavator
Overall dimensions Scope of work Complete machine configuration
Total length 2770mm Maximum excavation height 2620mm Work quality 0.85T
Overall width 920mm Maximum unloading height 1820mm Engine Youpu, Science Popularization, Changchai, Bailitong
Total height 1520mm Maximum excavation depth 1700mm Emission standard China II, Europe V
Track width 915mm Maximum excavation radius 2945mm Engine model 192F
Platform ground clearance 370mm Stick digging force 4Kn Engine power 7.6KW/3000rpm
track width 180mm Bucket digging force 6Kn Fuel tank volume 6L
Track Height 320mm Maximum digging force 7Kn Main pump displacement 6.5mL/r
Transportation length 2810mm Bucket volume 0.025m³ Hydraulic oil tank volume 13L
Maximum lifting height of bulldozer blade 315mm Travel speed 2.5km/h working pressure 16MPa
Maximum cleaning depth of bulldozer 265mm Gradeability 30° Mode of operation Connection and unloading operation
    Minimum turning radius of tail 1300mm

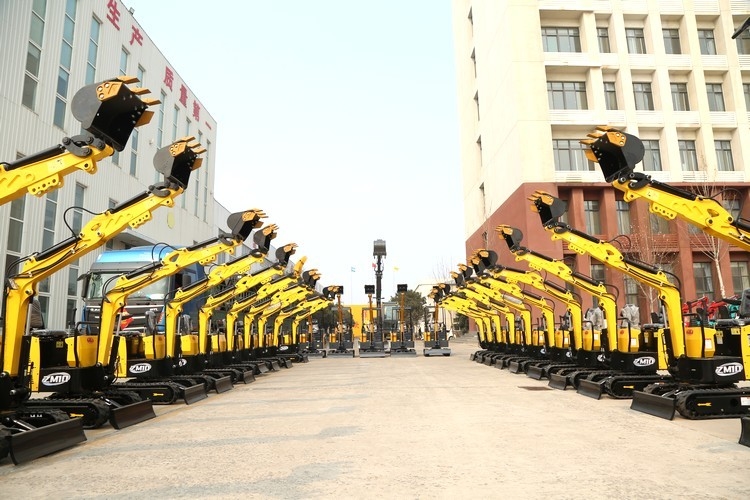

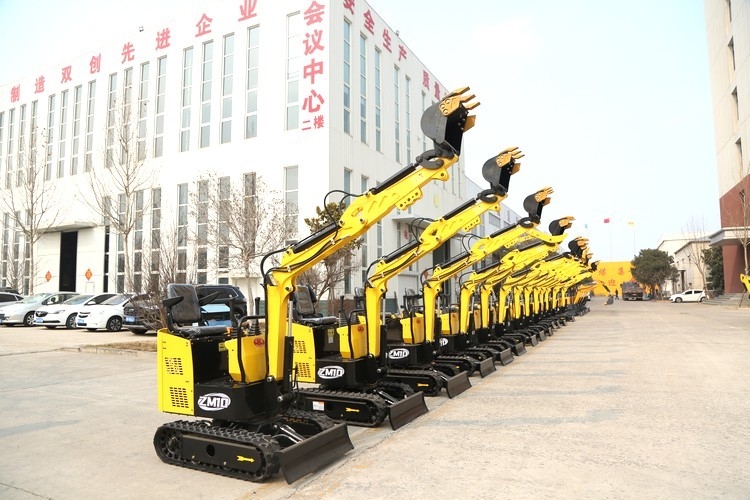

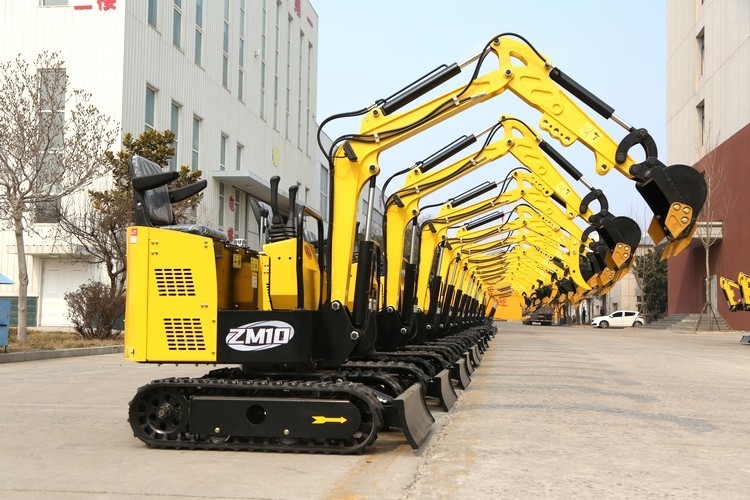

Photos Of Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger

Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 3

Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 4

Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 5

Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 6

Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 7

Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 8Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 9

Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 10Green Machine Small Crawler Excavator 360 Degree Rotate Compact Mini Digger 11
