Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE,EPA,ISO
Model Number:
ZM10
Contact Us
We specialize in manufacturing superior mini excavators to bring you peace of mind in construction equipment.We understand the importance of having reliable and efficient machinery that can tackle any task with ease.

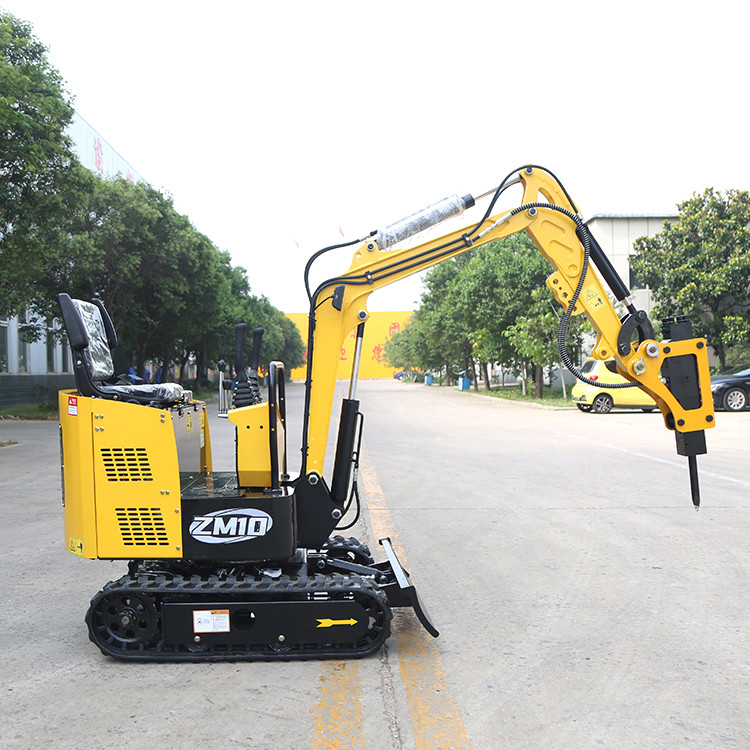

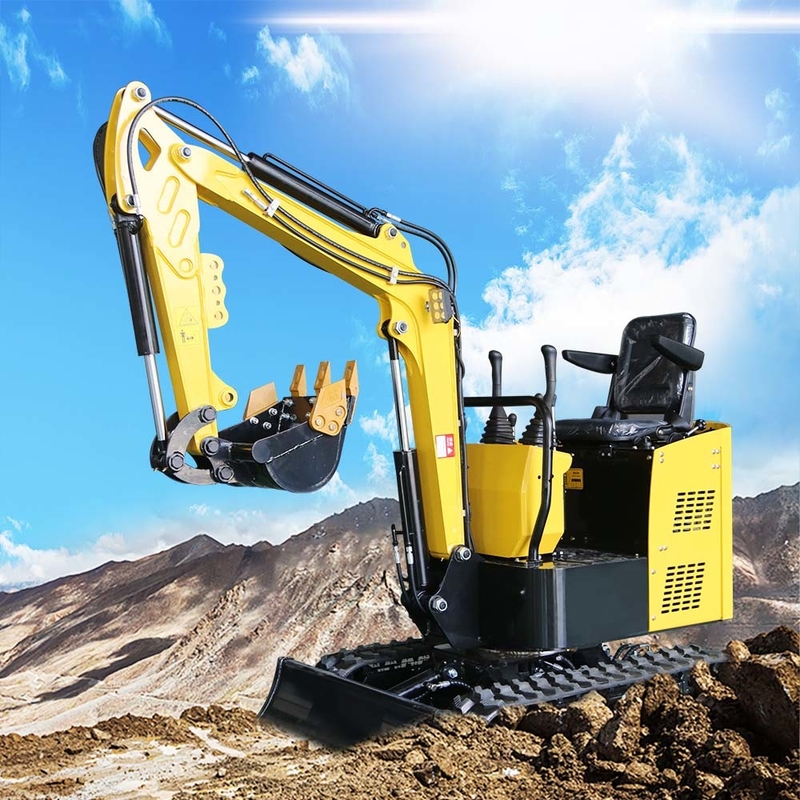

ZM10 mini excavator is a mini excavator manufactured for domestic modern and scientific production, which is suitable for various working environments instead of labor occasions. The main users are orchard trenching, landscaping, cable ducts, mountain planting, greenhouse vegetables, farmland transformation, basement, concrete breaking and other narrow spaces. The equipment adopts imported engine and mechanical operation. The ergonomically optimized joystick makes it more convenient and comfortable for the driver to operate.
Whether you're working on landscaping projects, utility installations, or any other excavation endeavor, our small excavators offer incredible precision, robust power, and superior durability, making them the perfect choice for your needs. Experience the advantages of our innovative features and ergonomic designs that prioritize operator comfort and safety, allowing you to work longer and more efficiently.
Trust in our expertise and let us empower you to achieve extraordinary results in your construction endeavors.
It is important to note that our mini excavators contribute to a greener future by significantly reducing carbon footprint and promoting sustainable practices. By embracing electric-powered machinery, construction companies can align themselves with environmental regulations, enhance their reputation as environmentally responsible entities, and contribute to a healthier and cleaner planet.
ZM10 Mini Excavator | |||||
Dimensions | The scope of work | Machine configuration | |||
Total Length | 2770mm | Digging Height | 2620mm | Quality Of Work | 0.77t |
Total Width | 920mm | Unloading Height | 1820mm | Engine | Youpu, Kepu, Changchai, Bailitong |
Total Height | 1520mm | Digging Depth | 1600mm | Emission Standards | Country II, Euro V |
Wheelbase | 915mm | Digging Radius | 2800mm | Engine Model | 192F |
Platform Ground Clearance | 370mm | Stick Digging Force | 4k | Engine Power | 7.6KW/3600rpm |
Track Width | 180mm | Bucket Digging Force | 6Kn | Fuel Tank Volume | 5L |
Track Height | 320mm | Digging Force | 7K | Main Pump Displacement | 6.5mL/r |
Transport Length | 2810mm | Bucket Volume | 0.025m³ | Hydraulic Oil Tank Volume | 13L |
Bulldozer Blade Maximum Lifting Height | 315mm | Walking Speed | 2.5km/h | Work Pressure | 16 MPa |
Bulldozing Blade Maximum Clearing Depth | 265mm | Gradeability | 30° | The Minimum Turning Radius Of The Tail | 1300mm |
