Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM17
Contact Us

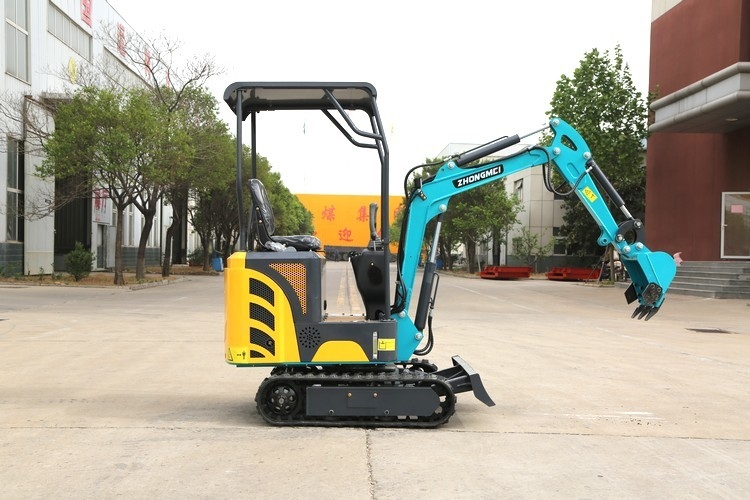

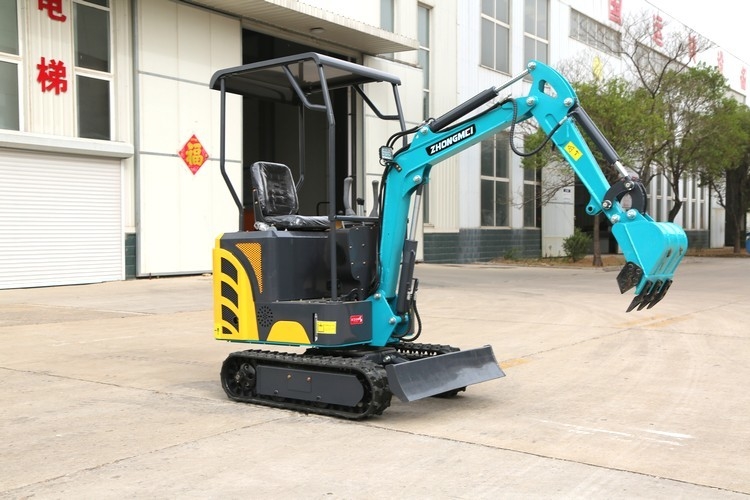

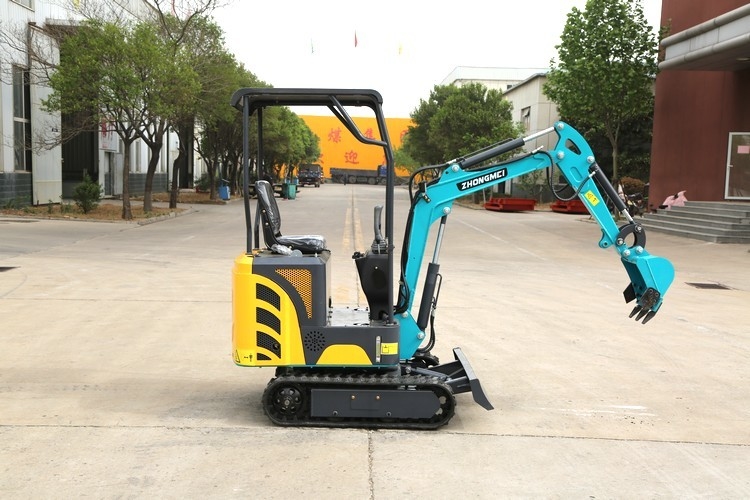

The ZM17 mini excavator is a high-quality and reliable construction machine that offers exceptional performance for various digging and excavation tasks. With its compact size and advanced hydraulic system, it provides precise control and maneuverability in tight spaces.
This mini excavator is designed for efficiency and productivity, featuring a powerful engine and a durable crawler system. With a weight of [Insert weight] ton, it offers stability and balance while operating on different terrains.
| ZM17 | |||||
| Overall dimensions | Scope of work | Complete machine configuration | |||
| Total length | 3300mm | Maximum excavation height | 2900mm | Work quality | 1680KG |
| Overall width | 1110mm | Maximum unloading height | 1850mm | engine | Laidong |
| Total height | 1520mm | Maximum excavation depth | 2100mm | emission standard | Country III |
| Track width | 1082mm | Maximum excavation radius | 3300mm | Engine model | KM385BN |
| Platform ground clearance | 370mm | Stick digging force | Engine power | 17.7KW/3300rpm | |
| track width | 180mm | Bucket digging force | Fuel tank volume | 15.5L | |
| Track Height | 330mm | Maximum digging force | Main pump displacement | 12/3mL/r | |
| Transportation length | 2800mm | Bucket volume | 0.03m³ | Hydraulic oil tank volume | 17L |
| Maximum lifting height of bulldozer blade | 150mm | Travel speed | 4.5km/h | working pressure | 16MPa |
| Maximum cleaning depth of bulldozer | 220mm | Gradeability | 45° | Mode of operation | Pilot operated operation |
| Minimum turning radius of tail | 1600mm | ||||
