1.2ton Mini Hydraulic Crawler Excavator

1.2ton Mini Hydraulic Crawler Excavator

Place of Origin:

shandong

Brand Name:

chinacoal

Certification:

CE,EPA,ISO,TUV

Model Number:

ZM12

Contact Us

Request A Quote
Product Details
Total Length:
2770mm
Total Width:
920mm
Total Height:
1520mm
Wheelbase:
915mm
Platform Ground Clearance:
370mm
Track Width:
180mm
Track Height:
320mm
Payment & Shipping Terms
Minimum Order Quantity
1set
Delivery Time
5-8 day
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Product Description

Introductions Of 1.2ton Mini Hydraulic Crawler Excavator

ZM12 Mini Excavator - Unleashing Power and Efficiency in a 1.2-ton Package.



With its increased lifting capacity and enhanced digging force, this mini excavator is built to tackle a variety of projects with ease.



The ZM12 boasts a compact design for maneuvering in confined spaces while delivering exceptional performance.



Equipped with advanced hydraulic technology and a digging depth of 1700mm, it ensures precise and efficient excavation.



Whether it's landscaping, construction, or utility work, the ZM12 Mini Excavator offers the power and versatility needed to get the job done efficiently.



Experience the next level of productivity with the ZM12 Mini Excavator.

Parameters Of 1.2ton Mini Hydraulic Crawler Excavator



ZM12
Overall dimensions Scope of work Complete machine configuration
Total length 2770mm Maximum excavation height 2620mm Work quality 0.85T
Overall width 920mm Maximum unloading height 1820mm engine Youpu, Science Popularization, Changchai, Bailitong
Total height 1520mm Maximum excavation depth 1700mm emission standard China II, Europe V
Track width 915mm Maximum excavation radius 2945mm Engine model 192F
Platform ground clearance 370mm Stick digging force 4Kn Engine power 7.6KW/3000rpm
track width 180mm Bucket digging force 6Kn Fuel tank volume 6L
Track Height 320mm Maximum digging force 7Kn Main pump displacement 6.5mL/r
Transportation length 2810mm Bucket volume 0.025m³ Hydraulic oil tank volume 13L
Maximum lifting height of bulldozer blade 315mm Travel speed 2.5km/h working pressure 16MPa
Maximum cleaning depth of bulldozer 265mm Gradeability 30° Mode of operation Connection and unloading operation
    Minimum turning radius of tail 1300mm

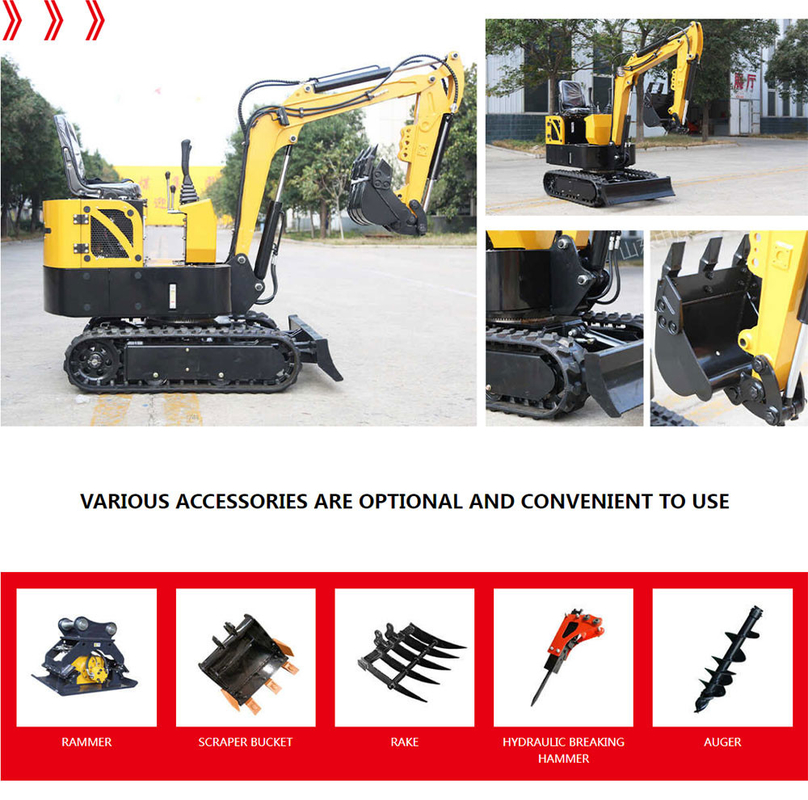

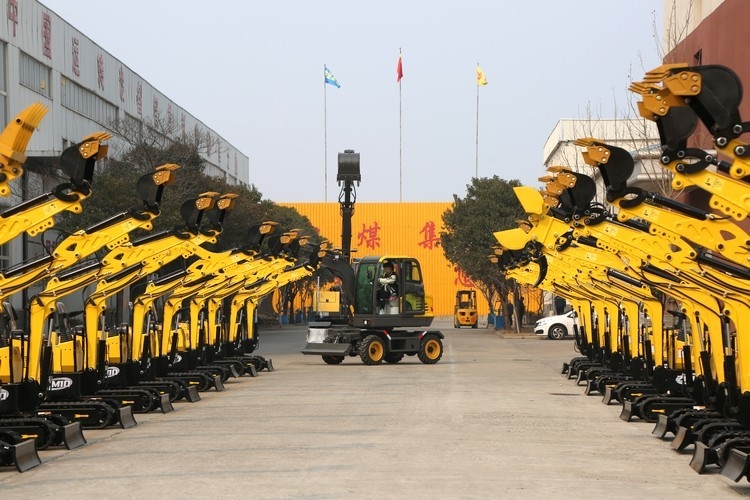

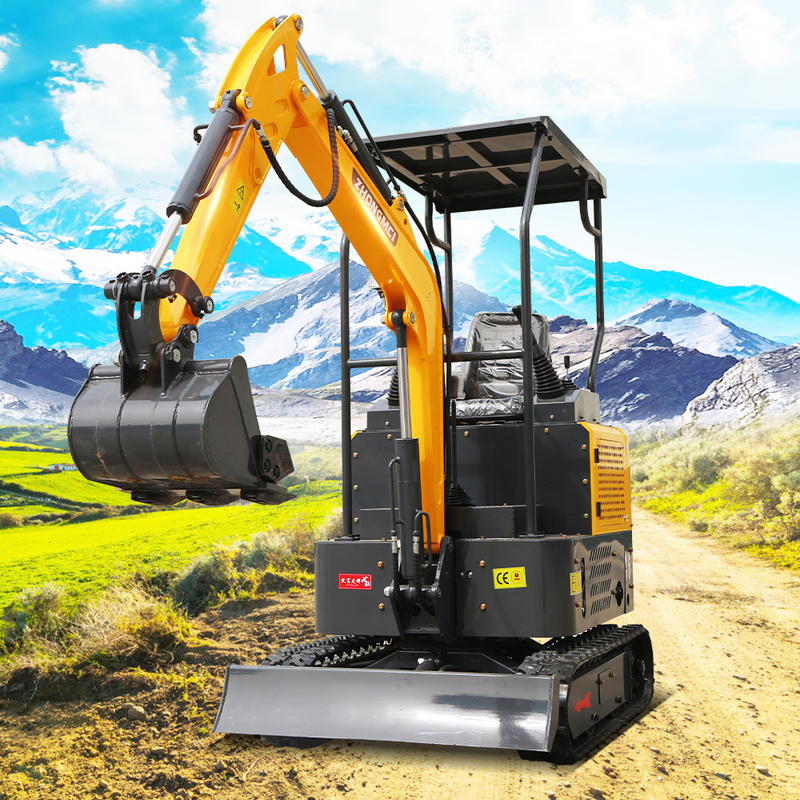

Photos Of 1.2ton Mini Hydraulic Crawler Excavator

1.2ton Mini Hydraulic Crawler Excavator 0



1.2ton Mini Hydraulic Crawler Excavator 1

1.2ton Mini Hydraulic Crawler Excavator 2



1.2ton Mini Hydraulic Crawler Excavator 3

1.2ton Mini Hydraulic Crawler Excavator 4

1.2ton Mini Hydraulic Crawler Excavator 51.2ton Mini Hydraulic Crawler Excavator 6

1.2ton Mini Hydraulic Crawler Excavator 71.2ton Mini Hydraulic Crawler Excavator 8
