Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM12
Contact Us
Video
Video
Advantage:

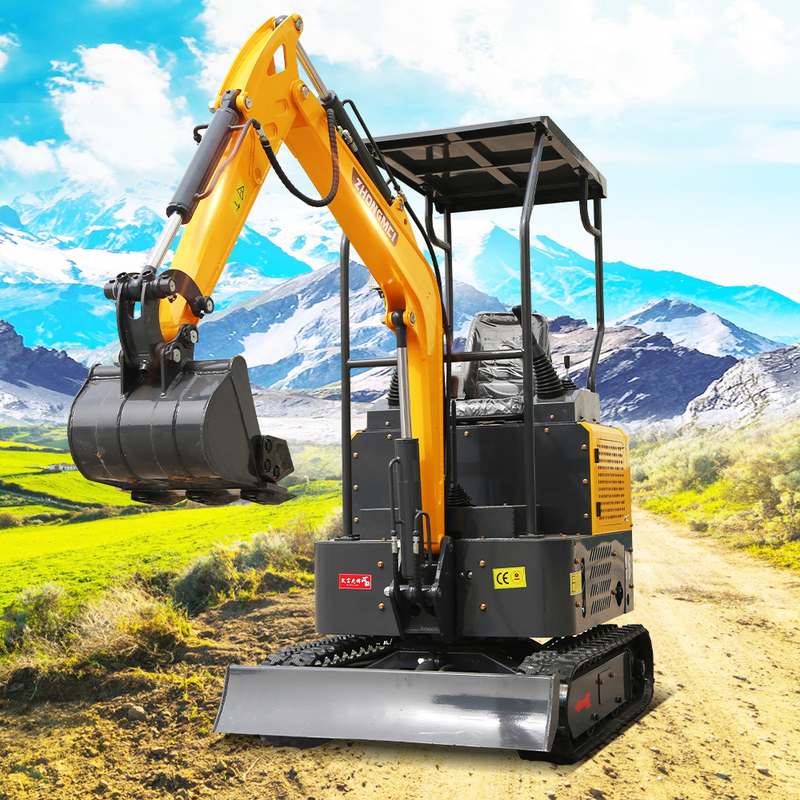

1) Mini crawler excavators have simple structure and compact design ,easy in installation and maintation.
2)Controls are easy to use and operate. The operating instructions in front of the console are simple and easy to use

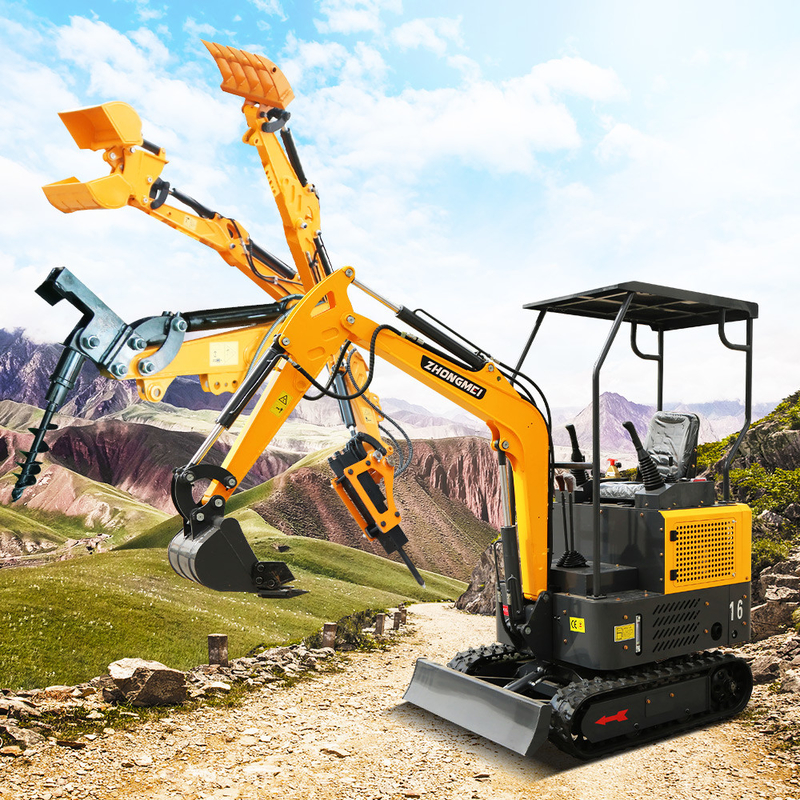

3)Auger, grab, hydraulic hammer, narrow bucket can be installed on this excavator, efficient and wide-range use.

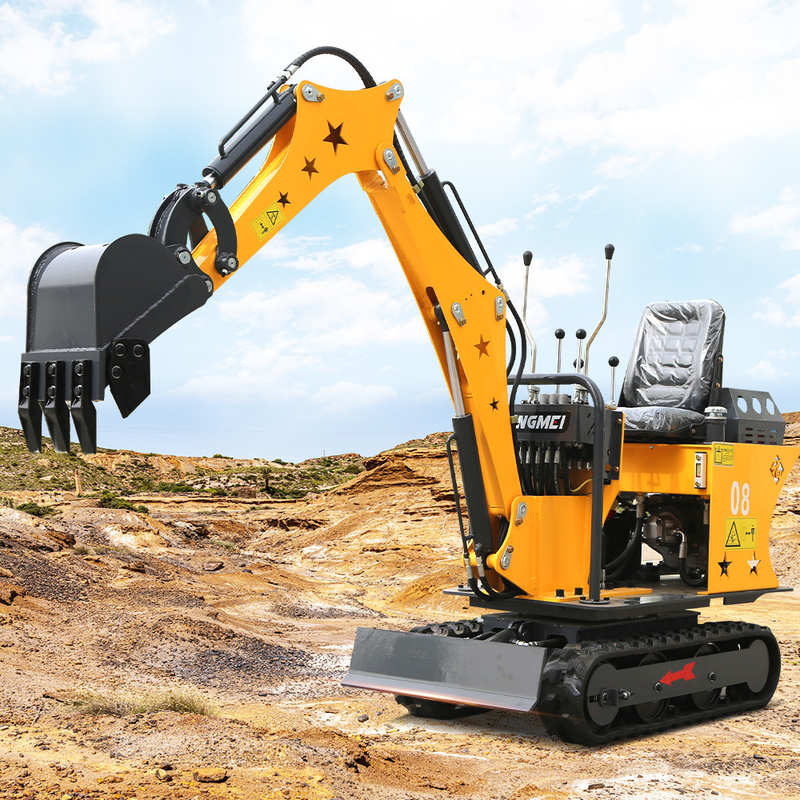

4) The smallest excavadora is 0.8 ton chinese mini bagger ,it can 360 rotation and We still have a lot of wheel excavator.
| ZM12 | |||||
| Overall dimensions | Scope of work | Complete machine configuration | |||
| Total length | 2770mm | Maximum excavation height | 2620mm | Work quality | 0.85T |
| Overall width | 920mm | Maximum unloading height | 1820mm | engine | Youpu, Science Popularization, Changchai, Bailitong |
| Total height | 1520mm | Maximum excavation depth | 1700mm | emission standard | China II, Europe V |
| Track width | 915mm | Maximum excavation radius | 2945mm | Engine model | 192F |
| Platform ground clearance | 370mm | Stick digging force | 4Kn | Engine power | 7.6KW/3000rpm |
| track width | 180mm | Bucket digging force | 6Kn | Fuel tank volume | 6L |
| Track Height | 320mm | Maximum digging force | 7Kn | Main pump displacement | 6.5mL/r |
| Transportation length | 2810mm | Bucket volume | 0.025m³ | Hydraulic oil tank volume | 13L |
| Maximum lifting height of bulldozer blade | 315mm | Travel speed | 2.5km/h | working pressure | 16MPa |
| Maximum cleaning depth of bulldozer | 265mm | Gradeability | 30° | Mode of operation | Connection and unloading operation |
| Minimum turning radius of tail | 1300mm | ||||
