Place of Origin:
shandong
Brand Name:
chinacoal
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM10
Contact Us
Video
Video

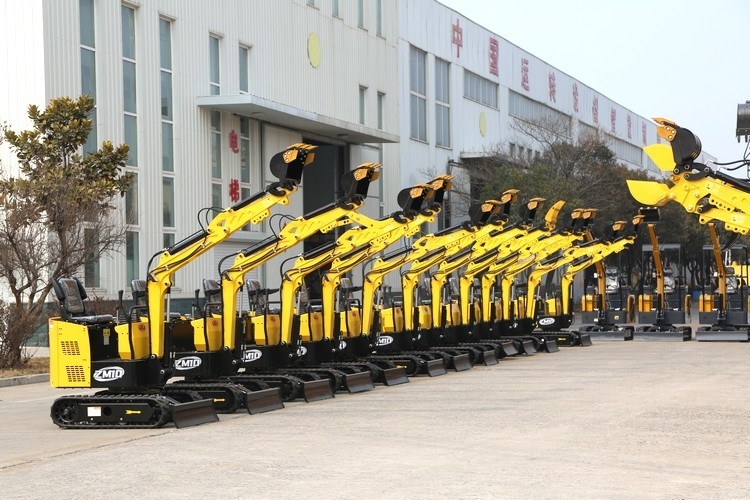

Introducing the ZM10 Mini Excavator: Power and Precision in a 1-ton Package. With its compact size, this mini excavator delivers exceptional performance for a wide range of applications.
Featuring advanced hydraulic technology and a digging depth of 1600mm, it ensures efficient digging and lifting operations. The ZM10 excels in tight spaces, making it perfect for landscaping, construction, and utility work. With its powerful engine and precise control, this mini excavator is designed to maximize productivity and minimize downtime.
Experience the versatility and reliability of the ZM10 Mini Excavator for all your small-scale projects.
| ZM10 Type A | |||||
| Dimensions | The scope of work | Machine configuration | |||
| total length | 2770mm | digging height | 2620mm | quality of work | 0.77t |
| total width | 920mm | unloading height | 1820mm | engine | Youpu, Kepu, Changchai, Bailitong |
| Total height | 1520mm | digging depth | 1600mm | Emission Standards | Country II, Euro V |
| wheelbase | 915mm | digging radius | 2800mm | engine model | 192F |
| Platform ground clearance | 370mm | Stick Digging Force | 4k | engine power | 7.6KW/3600rpm |
| track width | 180mm | Bucket Digging Force | 6Kn | fuel tank volume | 5L |
| track height | 320mm | digging force | 7K | Main pump displacement | 6.5mL/r |
| transport length | 2810mm | bucket volume | 0.025m³ | Hydraulic oil tank volume | 13L |
| Bulldozer blade maximum lifting height | 315mm | Walking speed | 2.5km/h | work pressure | 16 MPa |
| Bulldozing Blade Maximum Clearing Depth | 265mm | Gradeability | 30° | ||
| The minimum turning radius of the tail | 1300mm | ||||
