Place of Origin:
shandong
Brand Name:
chinacoal
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM10
Contact Us
Video
Video

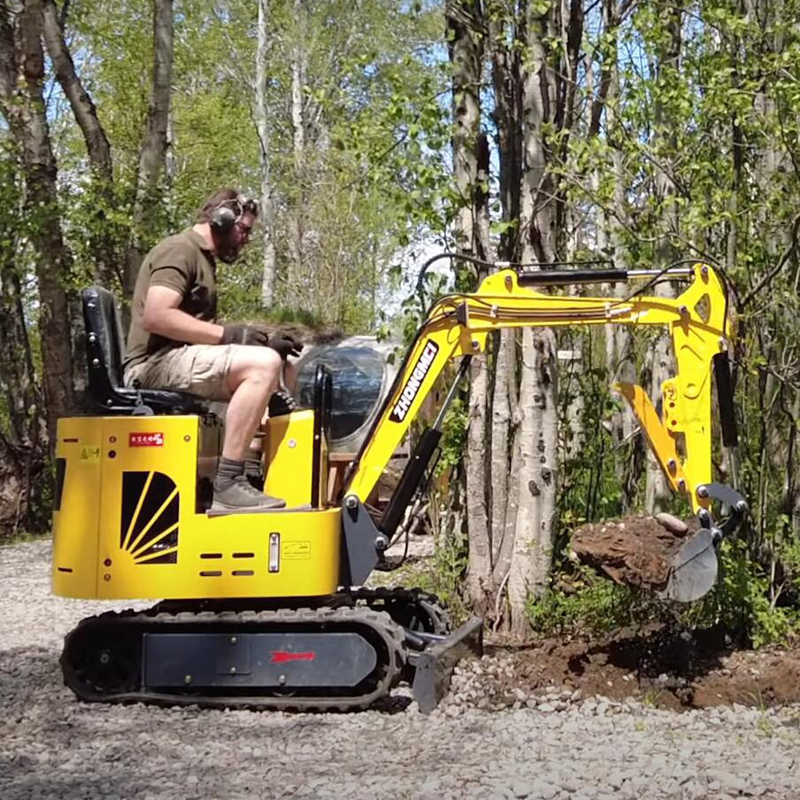

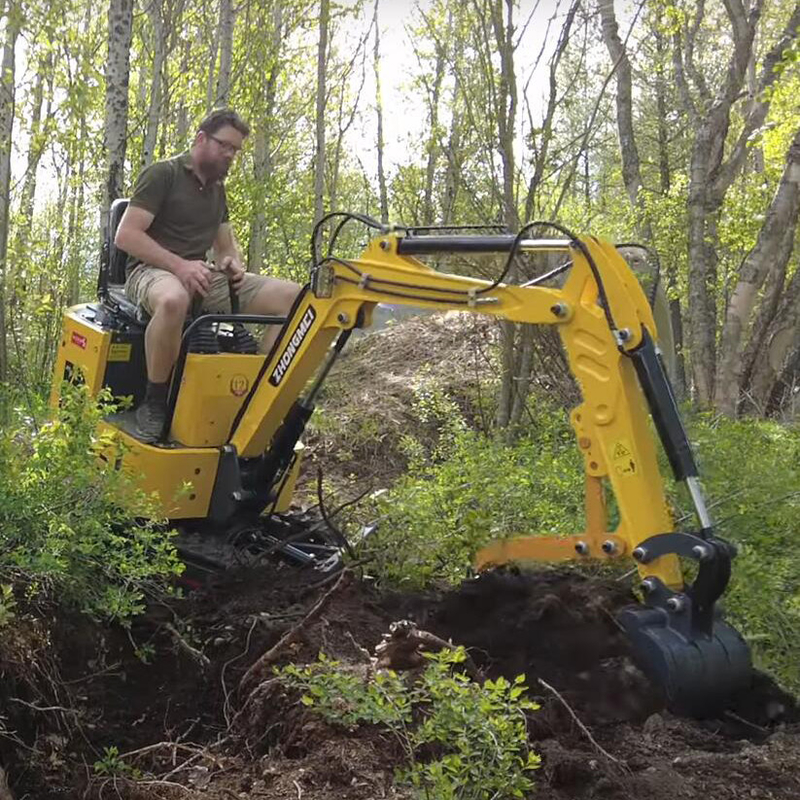

ZM10 mini excavator is a mini excavator manufactured for domestic modern and scientific production, which is suitable for various working environments instead of labor occasions.

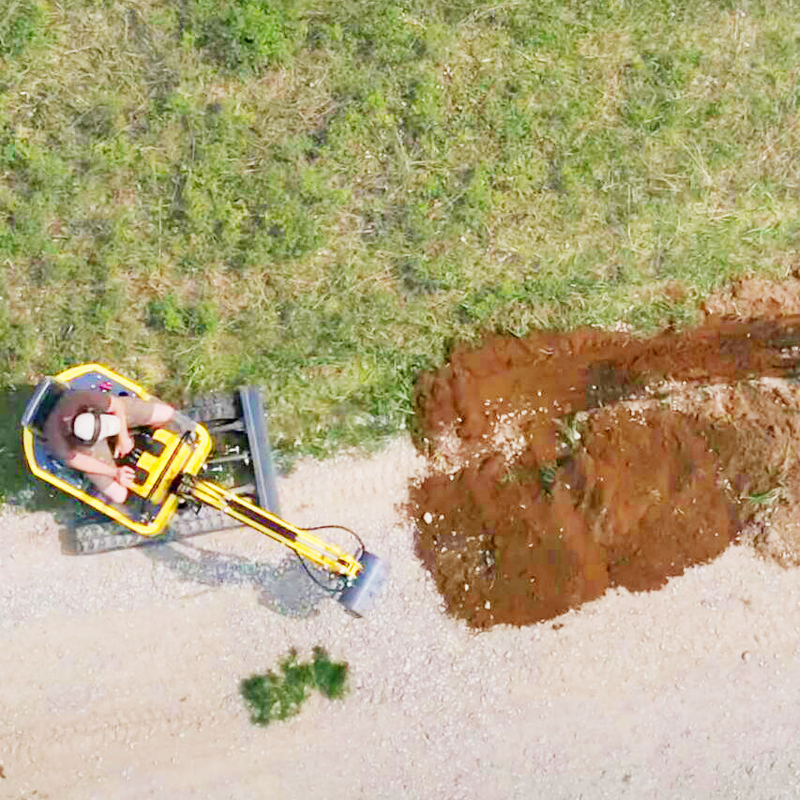

The main users are orchard trenching, landscaping, cable ducts, mountain planting, greenhouse vegetables, farmland transformation, basement, concrete breaking and other narrow spaces. The equipment adopts imported engine and mechanical operation.
The ergonomically optimized joystick makes it more convenient and comfortable for the driver to operate.
| ZM10 Type A | |||||
| Dimensions | The scope of work | Machine configuration | |||
| total length | 2770mm | digging height | 2620mm | quality of work | 0.77t |
| total width | 920mm | unloading height | 1820mm | engine | Youpu, Kepu, Changchai, Bailitong |
| Total height | 1520mm | digging depth | 1600mm | Emission Standards | Country II, Euro V |
| wheelbase | 915mm | digging radius | 2800mm | engine model | 192F |
| Platform ground clearance | 370mm | Stick Digging Force | 4k | engine power | 7.6KW/3600rpm |
| track width | 180mm | Bucket Digging Force | 6Kn | fuel tank volume | 5L |
| track height | 320mm | digging force | 7K | Main pump displacement | 6.5mL/r |
| transport length | 2810mm | bucket volume | 0.025m³ | Hydraulic oil tank volume | 13L |
| Bulldozer blade maximum lifting height | 315mm | Walking speed | 2.5km/h | work pressure | 16 MPa |
| Bulldozing Blade Maximum Clearing Depth | 265mm | Gradeability | 30° | ||
| The minimum turning radius of the tail | 1300mm | ||||
