Place of Origin:
Shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM08
Contact Us
Video
Video
Small excavators are also called small excavators, and the definitions of small excavators are also different. For example, in countries where backhoe loaders are sold well (such as the United Kingdom, France and Italy), 1 to 3-ton small excavators are the mainstream products.
In countries where the use of backhoe loaders is not very common (such as Germany), 4-6 ton products are more inclined to be used. However, almost all countries tend to purchase larger equipment. From this we conclude that the definition of a small excavator is that a backhoe loader of 1 to 6 tons can be called a small excavator, of which 2.7 to 3.0 tons of products are The reason for the large proportion is that they can be easily transferred to the ground using general-purpose transport vehicles.

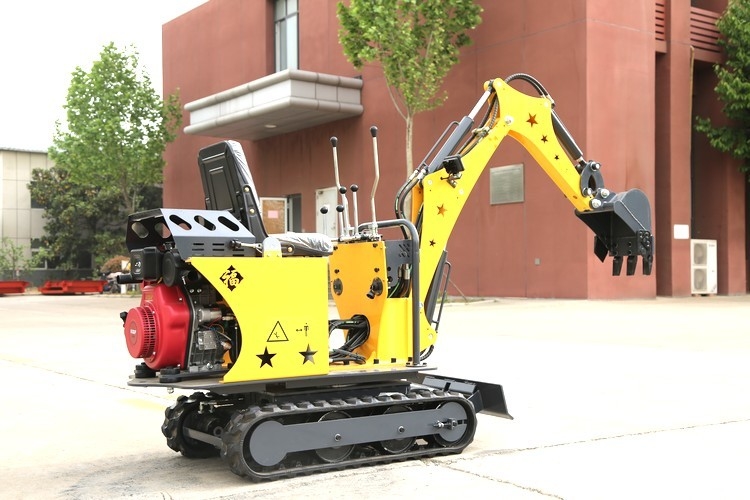

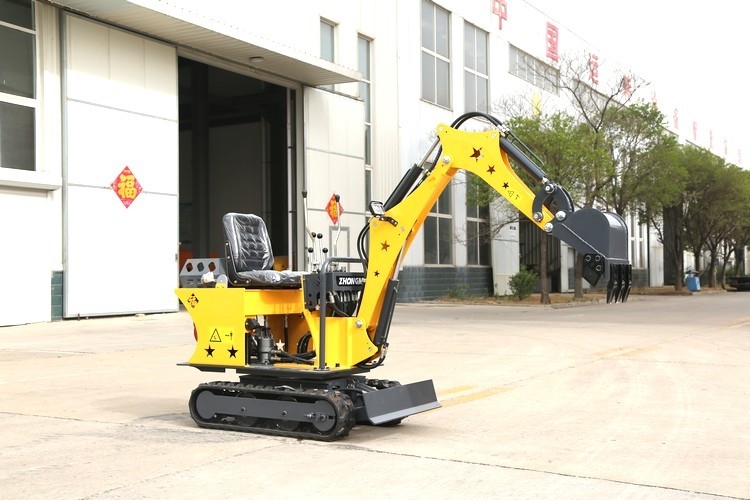

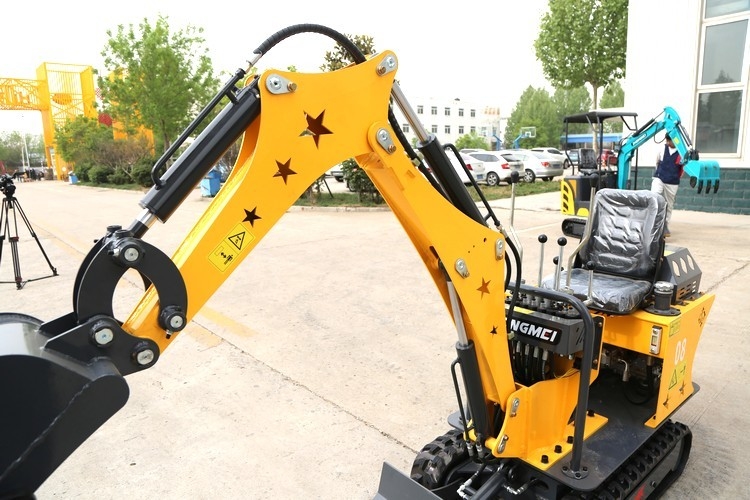

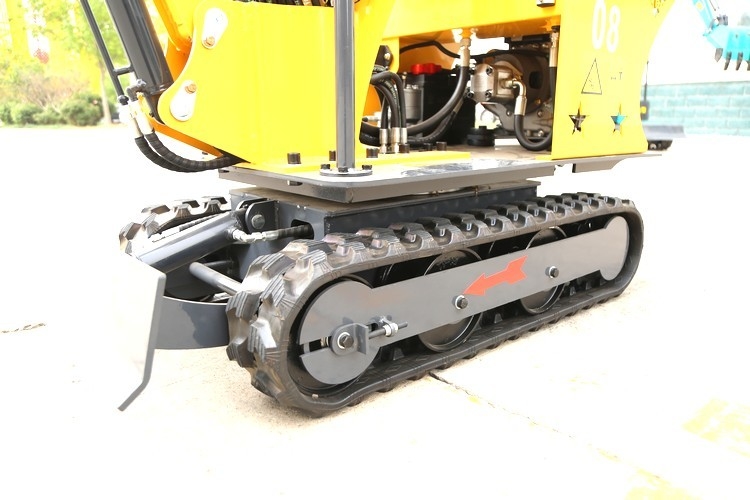

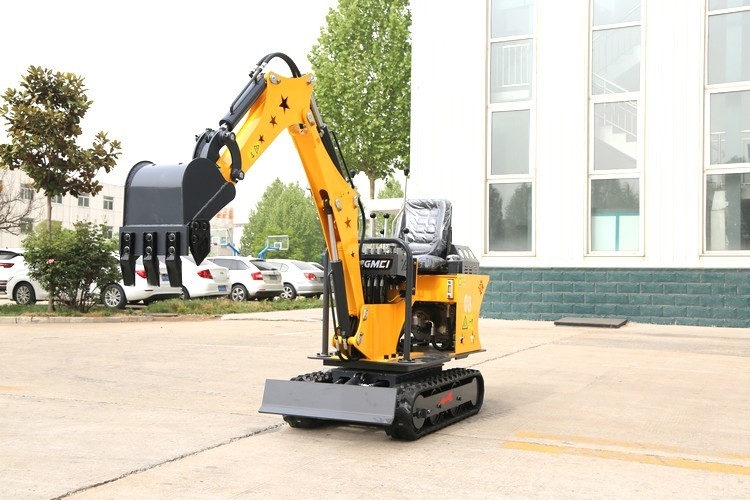

Mini excavators benefit from their small size and are ideal for earthmoving applications mainly in urban areas.
| Performance parameters |
Specification | Size range | Specification |
| Vehicle weight | 700kg | wheelbase | 420mm |
| Standard Bucket Capacity | 0.02m3 | Track ground length | 1150mm |
| Working device form | backhoe | Minimum ground clearance | 80mm |
| Power | 9KW/12.5 hp 10KW/13.5 hp 8.3KW/12 hp 7.6KW/10 hp |
Chassis width | 730mm |
| Maximum digging radius | 2050mm | Track width | 150mm |
| Maximum excavation depth | 1400mm | Shipping length | 2200mm |
| Maximum excavation height | 2350mm | full vehicle height | 1880mm |
| Maximum unloading height | 1600mm | radius of gyration | 1100mm |
| Multi-way valve | Imported from Japan | hydraulic pump | Imported from Italy |
| Overall size | 2200mm*730mm*1880mm | ||
