Place of Origin:
shandong
Brand Name:
chinacoal
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM10
Contact Us
Video

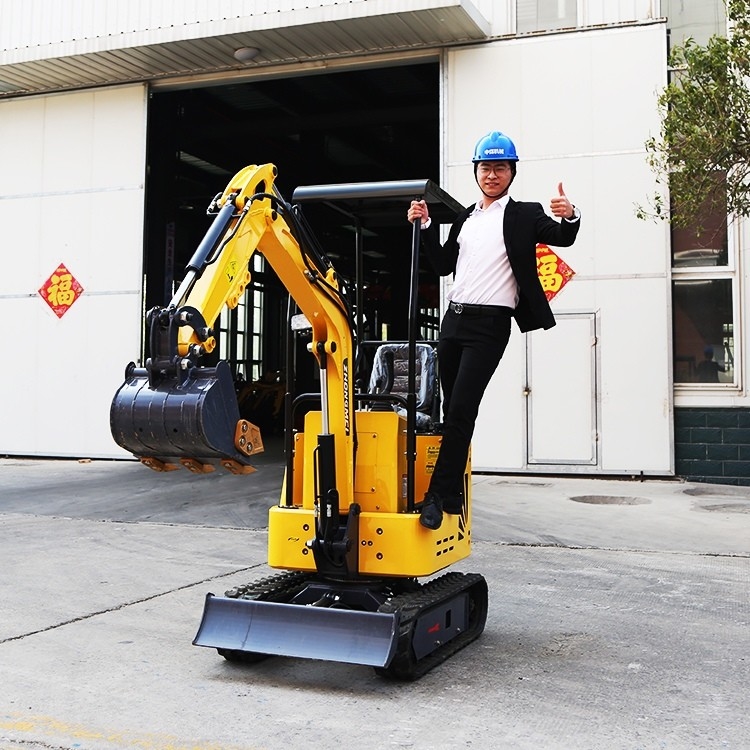

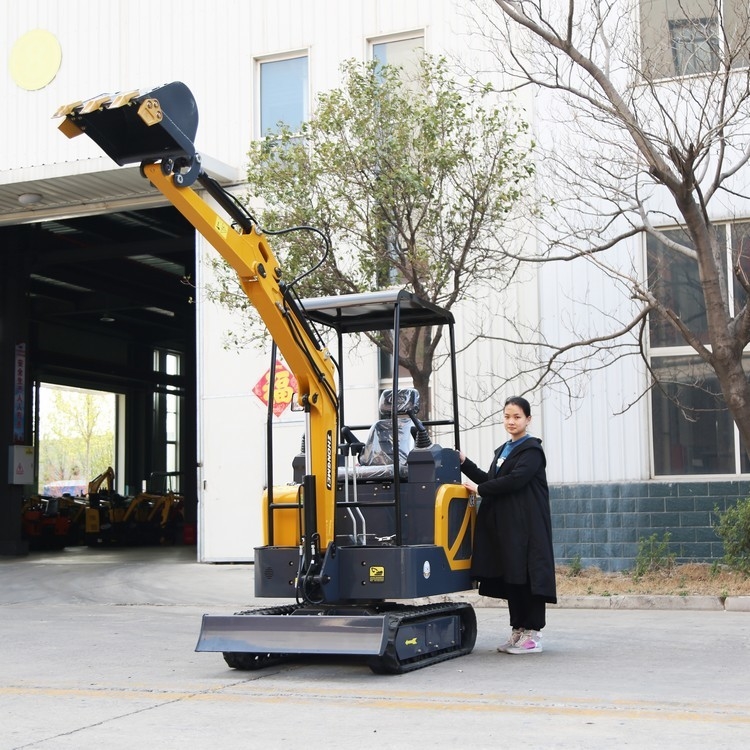

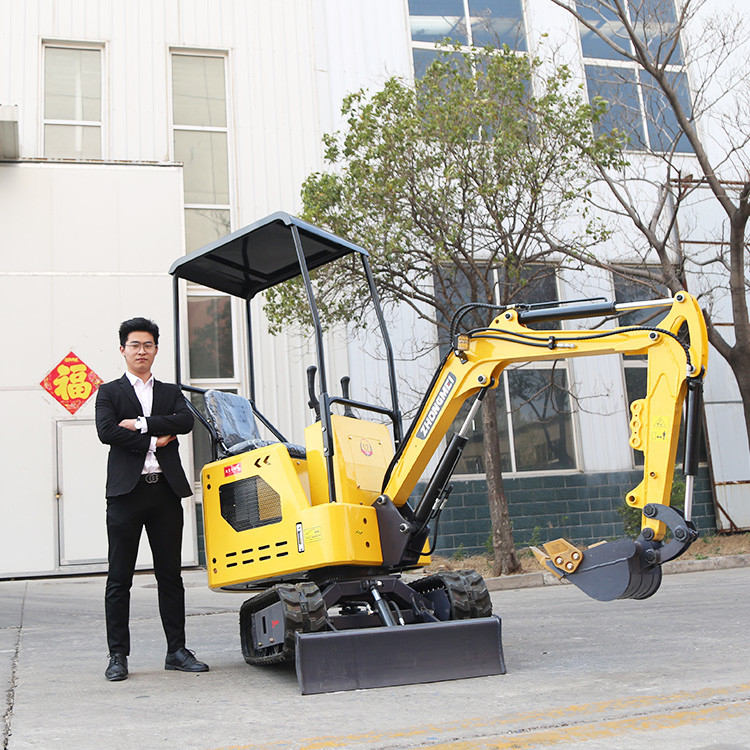

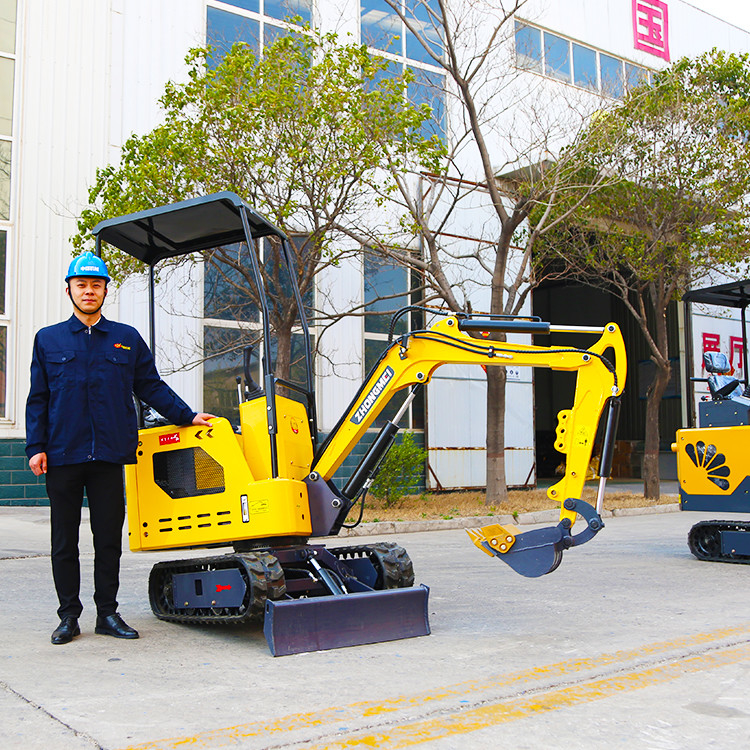

Introducing the 1-ton Remote-Controlled Mini Excavator, a compact and versatile construction machine designed to provide efficient and precise digging capabilities with the added convenience of remote control operation.
Equipped with advanced remote control technology, this mini excavator allows operators to control the machine from a safe distance, minimizing exposure to potential hazards and improving overall safety on the job site. The remote control functionality offers operators greater flexibility and control over the excavator's movements.
| ZM10 Type A | |||||
| Dimensions | The scope of work | Machine configuration | |||
| total length | 2770mm | digging height | 2620mm | quality of work | 0.77t |
| total width | 920mm | unloading height | 1820mm | engine | Youpu, Kepu, Changchai, Bailitong |
| Total height | 1520mm | digging depth | 1600mm | Emission Standards | Country II, Euro V |
| wheelbase | 915mm | digging radius | 2800mm | engine model | 192F |
| Platform ground clearance | 370mm | Stick Digging Force | 4k | engine power | 7.6KW/3600rpm |
| track width | 180mm | Bucket Digging Force | 6Kn | fuel tank volume | 5L |
| track height | 320mm | digging force | 7K | Main pump displacement | 6.5mL/r |
| transport length | 2810mm | bucket volume | 0.025m³ | Hydraulic oil tank volume | 13L |
| Bulldozer blade maximum lifting height | 315mm | Walking speed | 2.5km/h | work pressure | 16 MPa |
| Bulldozing Blade Maximum Clearing Depth | 265mm | Gradeability | 30° | ||
| The minimum turning radius of the tail | 1300mm | ||||
