Place of Origin:
Shandong
Brand Name:
ZHONGMEI
Certification:
CE,EPA,ISO,TUV
Model Number:
ZM08
Contact Us

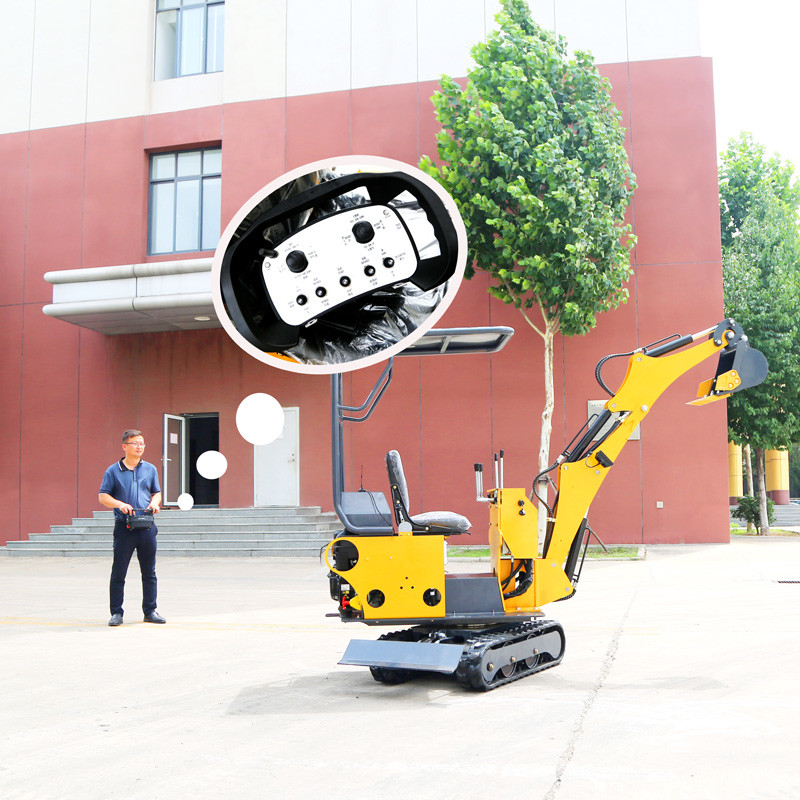

With remote control functionality, operators have precise control over the excavator's movements, including digging, lifting, and rotating. This level of control enables operators to work with greater accuracy and efficiency, even in tight spaces or challenging terrains.

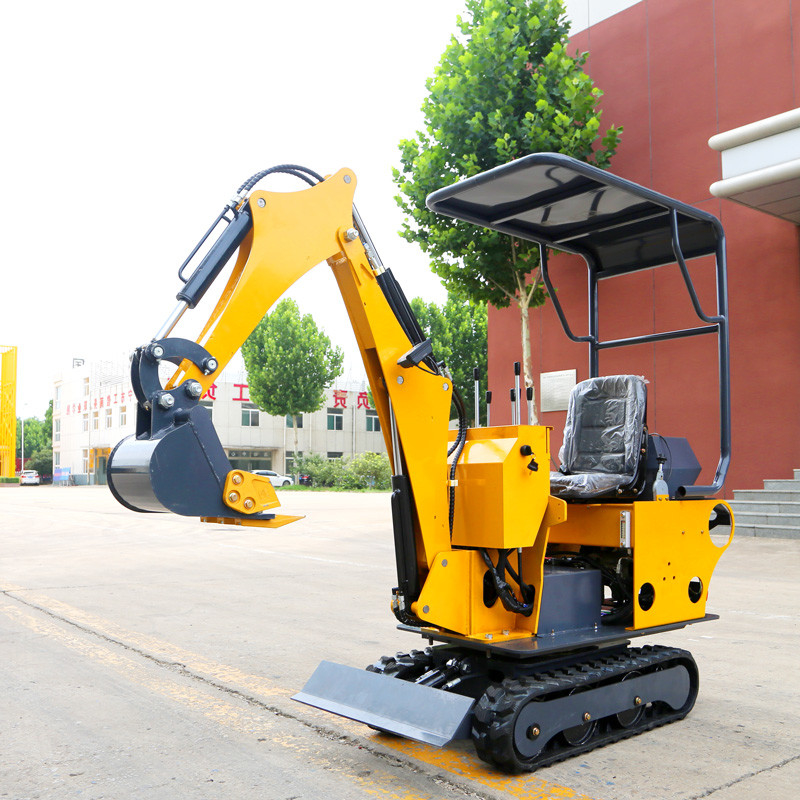

The compact size of the Remote-Controlled Mini Excavator enhances its maneuverability, making it suitable for a wide range of applications. It can navigate through narrow pathways, confined job sites, or even operate indoors with ease, providing versatility in various construction, landscaping, and utility installation projects.
Performance parameters |
Specification | Size range | Specification |
Vehicle weight | 700kg | wheelbase | 420mm |
Standard Bucket Capacity | 0.02m3 | Track ground length | 1150mm |
Working device form | backhoe | Minimum ground clearance | 80mm |
Power | 9KW/12.5 hp 10KW/13.5 hp 8.3KW/12 hp 7.6KW/10 hp |
Chassis width | 730mm |
Maximum digging radius | 2050mm | Track width | 150mm |
Maximum excavation depth | 1400mm | Shipping length | 2200mm |
Maximum excavation height | 2350mm | full vehicle height | 1880mm |
Maximum unloading height | 1600mm | radius of gyration | 1100mm |
Multi-way valve | Imported from Japan | hydraulic pump | Imported from Italy |
Overall size | 2200mm*730mm*1880mm |
