Place of Origin:
Shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM08
Contact Us
Video

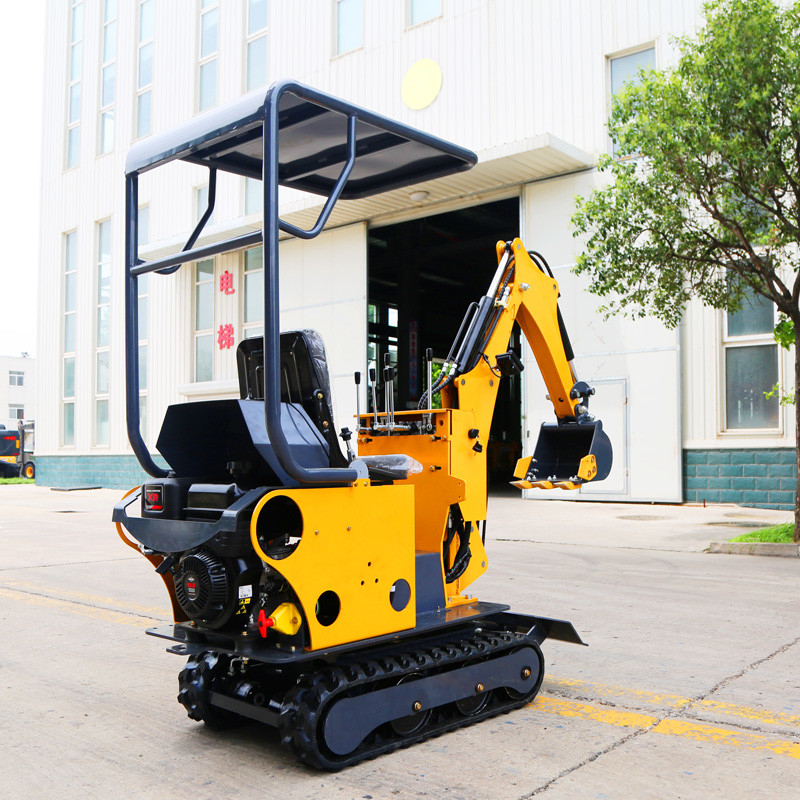

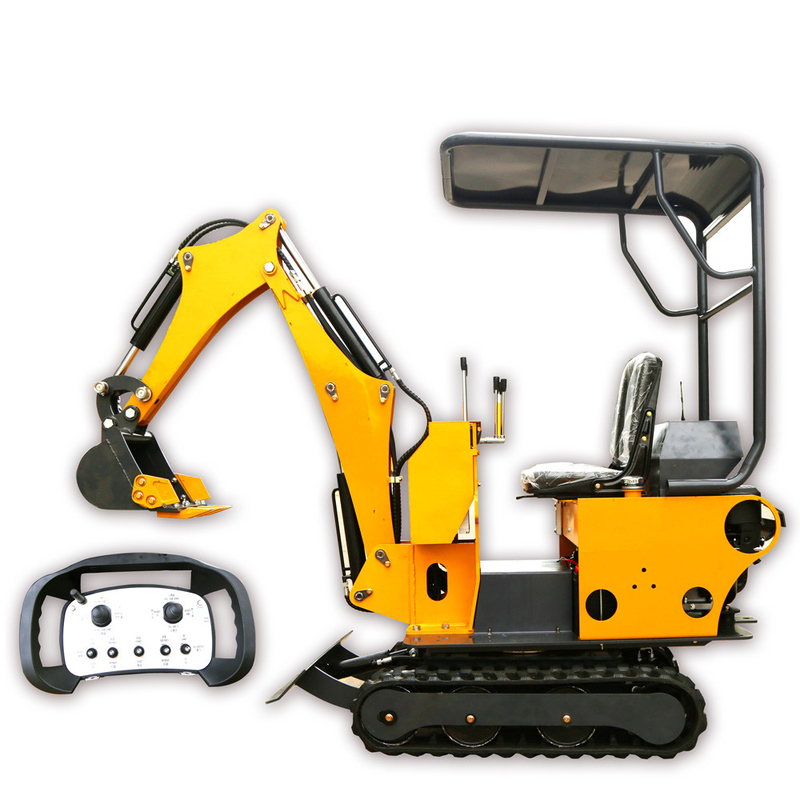

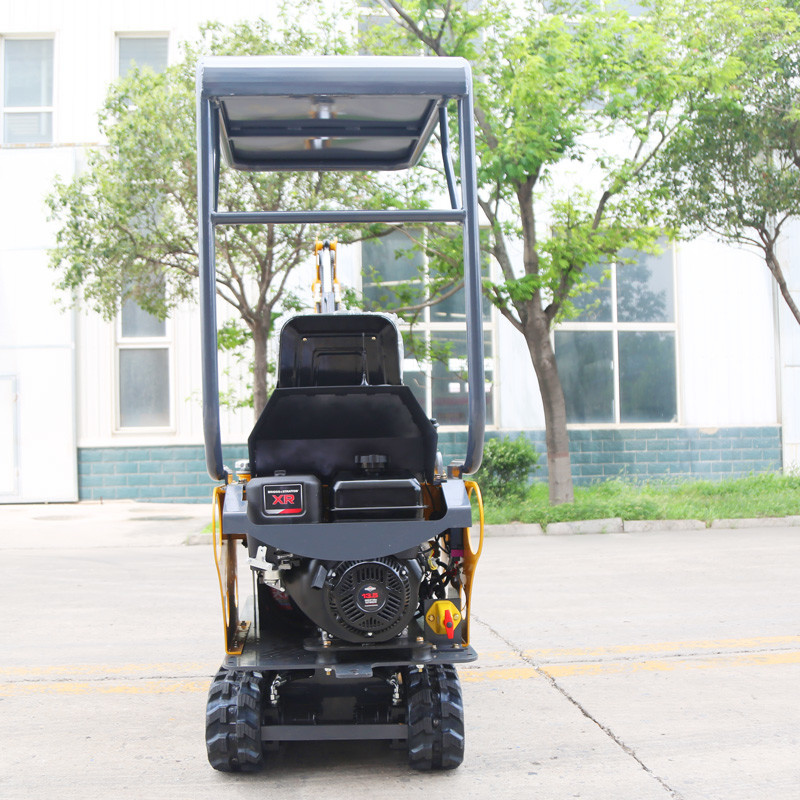

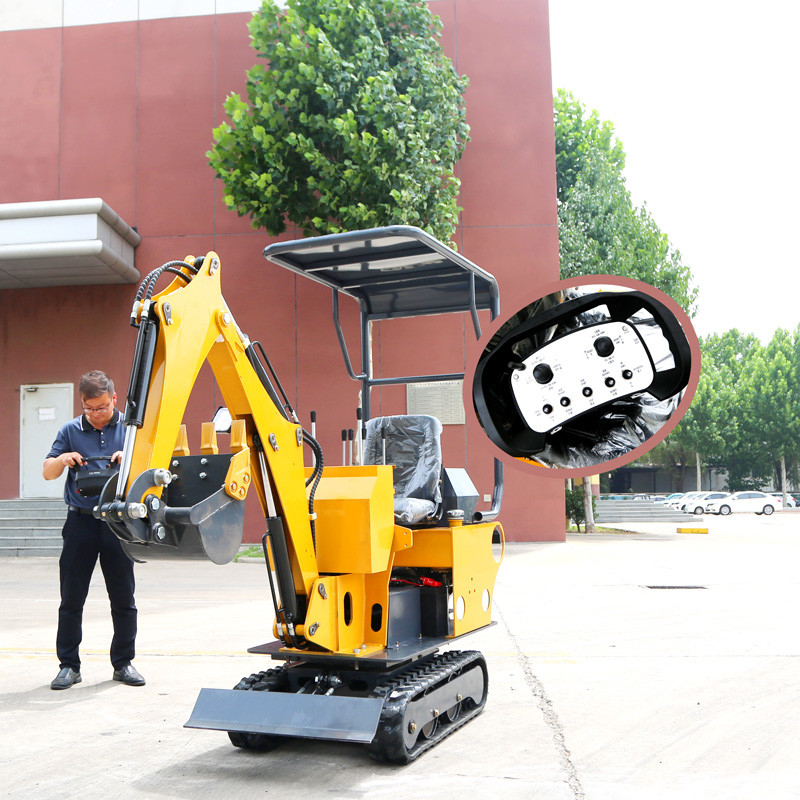

Introducing the Remote-Controlled Mini Excavator, a state-of-the-art construction machine designed for enhanced safety, precision, and versatility. This innovative excavator allows operators to control the machine remotely, providing numerous benefits in various applications.
The Remote-Controlled Mini Excavator offers increased safety by allowing operators to maintain a safe distance from potentially hazardous work areas. It is particularly advantageous in situations where there are risks of cave-ins, unstable ground conditions, or exposure to harmful substances.
| Performance parameters |
Specification | Size range | Specification |
| Vehicle weight | 700kg | wheelbase | 420mm |
| Standard Bucket Capacity | 0.02m3 | Track ground length | 1150mm |
| Working device form | backhoe | Minimum ground clearance | 80mm |
| Power | 9KW/12.5 hp 10KW/13.5 hp 8.3KW/12 hp 7.6KW/10 hp |
Chassis width | 730mm |
| Maximum digging radius | 2050mm | Track width | 150mm |
| Maximum excavation depth | 1400mm | Shipping length | 2200mm |
| Maximum excavation height | 2350mm | full vehicle height | 1880mm |
| Maximum unloading height | 1600mm | radius of gyration | 1100mm |
| Multi-way valve | Imported from Japan | hydraulic pump | Imported from Italy |
| Overall size | 2200mm*730mm*1880mm | ||
