Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM30
Contact Us
We specialize in manufacturing superior mini excavators to bring you peace of mind about your construction equipment. We understand the importance of having reliable and efficient machinery that can handle any task with ease.
With our cutting-edge technology and unwavering commitment to quality, we guarantee to offer a powerful and versatile lineup of mini excavators that will exceed your expectations.

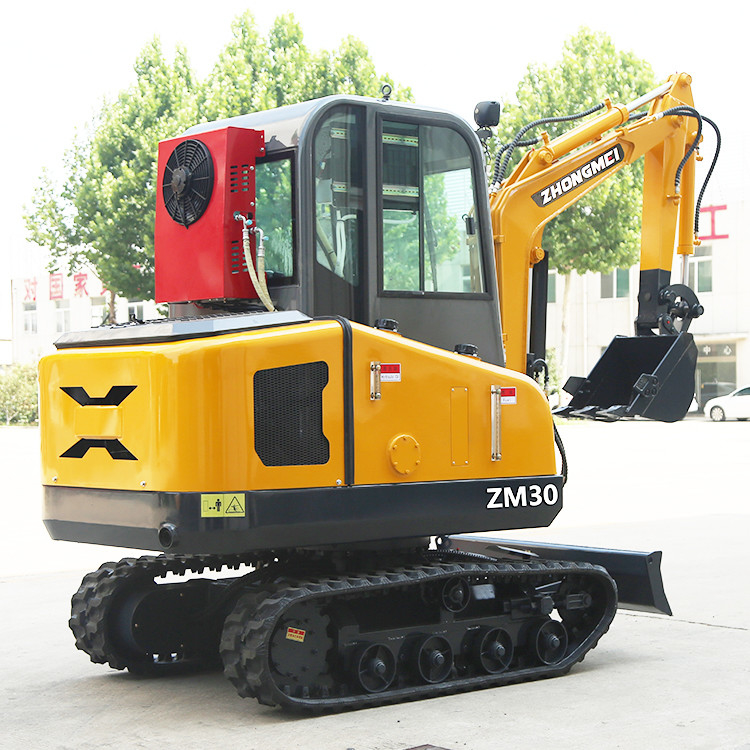

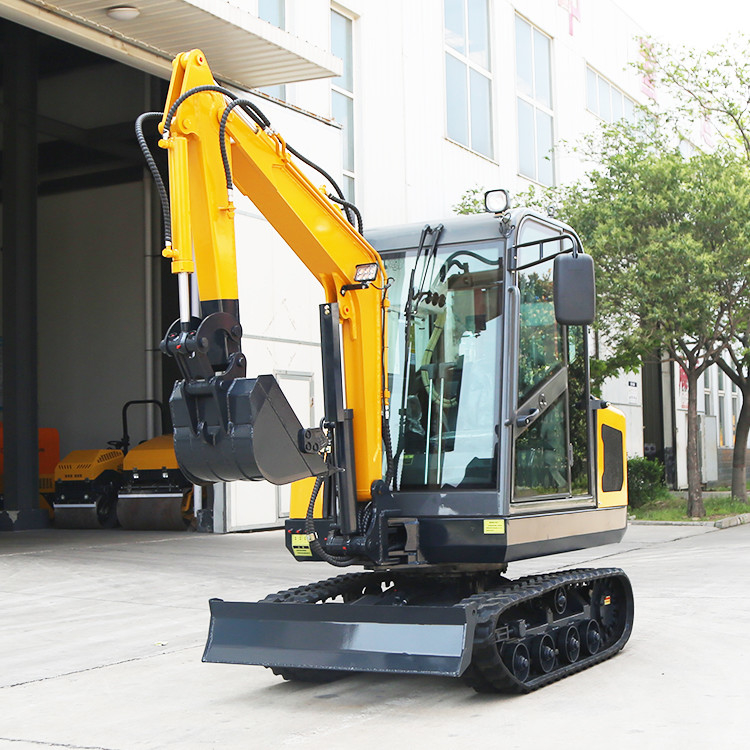

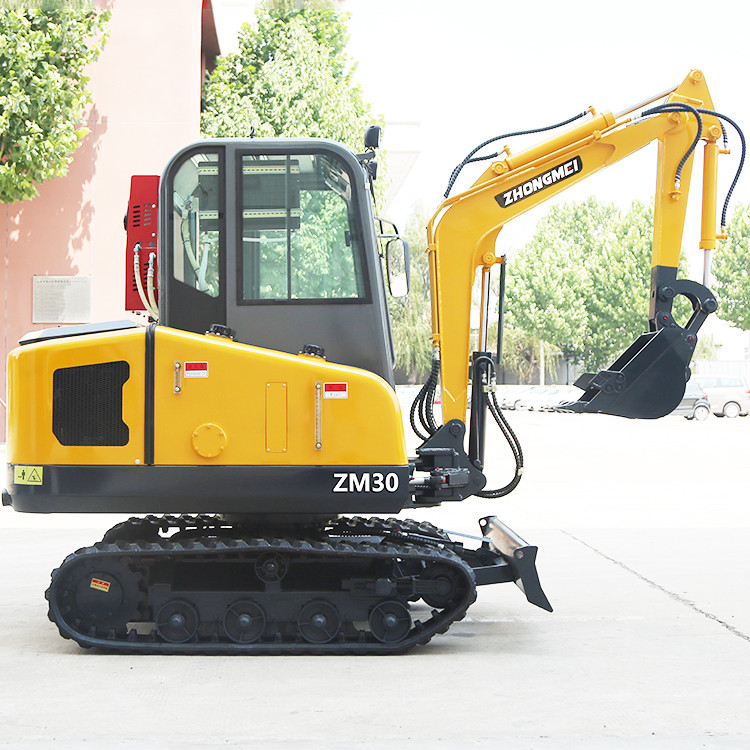

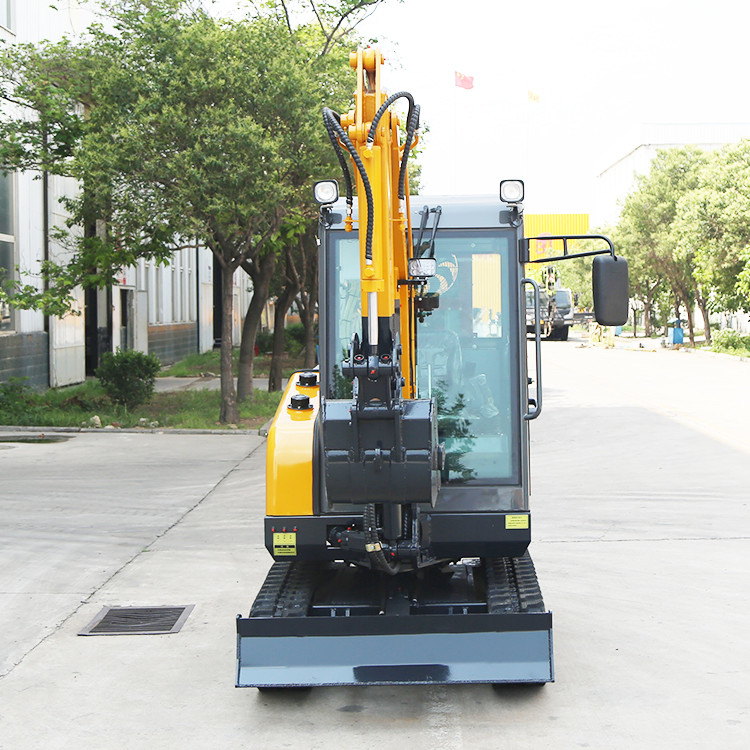

Introducing our Small Excavator - the perfect solution for your digging needs. With a working weight of 2500 Kg and a compact design, this excavator is highly maneuverable, making it ideal for tight spaces. Its 0.1m³ bucket capacity ensures efficient digging, while the 22.1KW (National II) engine provides reliable power at a rated speed of 2200 r/min.
Equipped with a robust hydraulic system with a pressure of 16MPa, our excavator can handle tough tasks with ease. Its impressive climbing degree of 30° allows it to navigate challenging terrains effortlessly. The 23×10³ N/m² grounding pressure ensures stability during operation.
Our machines have been carefully designed to deliver superior performance, allowing you to effortlessly maneuver in tight spaces while maximizing productivity.
Whether you're working on a landscaping project, utility installation or any other excavation job, our mini excavators offer incredible precision, power and superior durability, making them the perfect choice for your needs. Experience the benefits of our innovative features and ergonomic designs that prioritize operator comfort and safety, allowing you to work longer and more efficiently.
Notably, our mini excavators contribute to a greener future by significantly reducing their carbon footprint and promoting sustainable practices. By adopting electrically powered machinery, construction companies can align themselves with environmental regulations, enhance their reputation as environmentally responsible entities and contribute to a healthier and cleaner planet.
| Parameter | Value |
| Working weight | 2500 Kg |
| Bucket capacity | 0.1 m³ |
| Engine power | 22.1 KW (National II) |
| Engine rated speed | 2200 r/min |
| Hydraulic system pressure | 16 MPa |
| Climbing degree | 30° |
| Grounding pressure | 23×10³ N/m² |
| Traveling speed | 2 Km/h |
| Max. traction force | 11.5 KN |
| Platform rotation speed | 10 r/min |
| Total length (A) | 4200 mm |
| Total width (B) | 1300 mm |
| Total height (C) | 2300 mm |
| Platform turning radius (D) | 1250 mm |
| Track length (E) | 1900 mm |
| Height above ground (F) | 260 mm |
| Movable arm end height (G) | 960 mm |
| Platform outer width (H) | 1060 mm |
| Engine cover height (I) | 1390 mm |
| Platform height above ground (J) | 810 mm |
| Track width (K) | 230 mm |
| Max. digging height (A) | 3200 mm |
| Max. unloading height (B) | 2450 mm |
| Max. digging depth (C) | 2350 mm |
| Max. digging radius (D) | 4200 mm |
| Max. ground level digging distance (D1) | 3100 mm |
| Max. digging height of digging radius (E) | 3800 mm |
| Min. turning radius (F) | 2300 mm |
| Max. bucket depth of bulldozing shovel (G) | 150 mm |
| Max. lifting height of bulldozer (H) | 210 mm |
