Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA ，EURO5
Model Number:
Electric Excavator
Contact Us
Video
Video

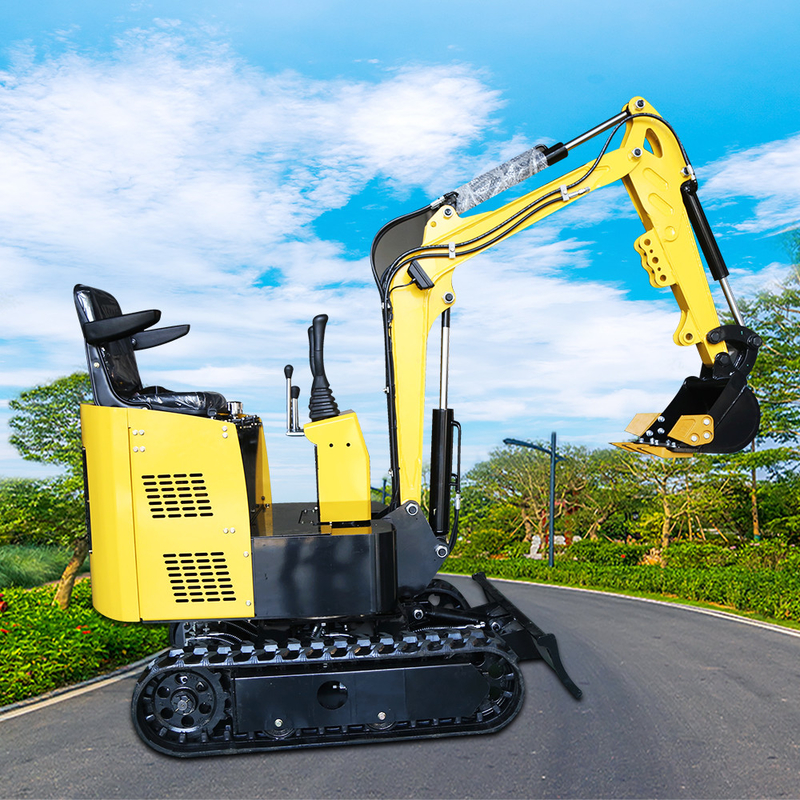

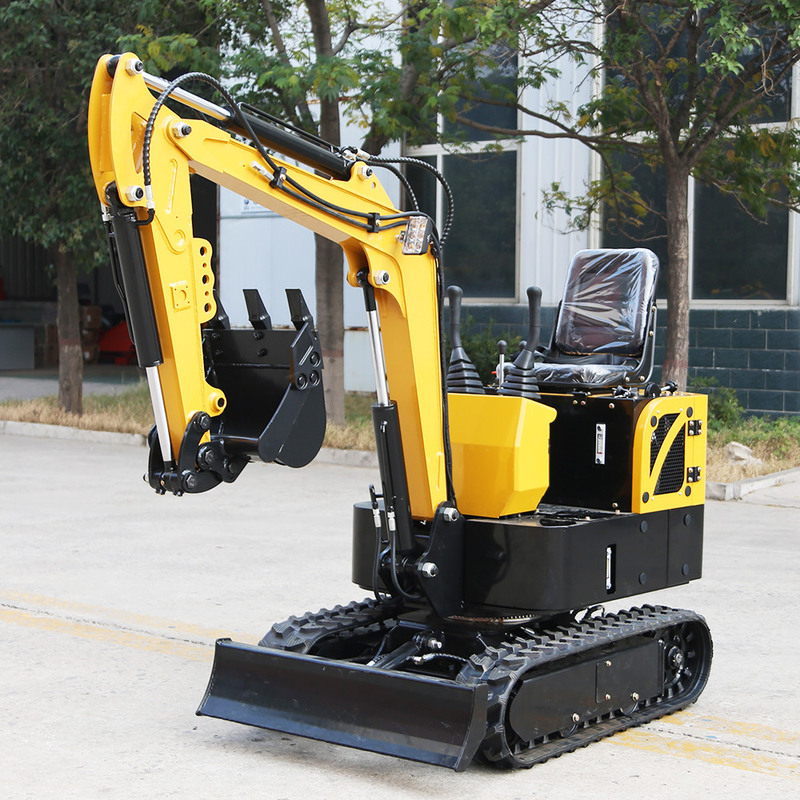

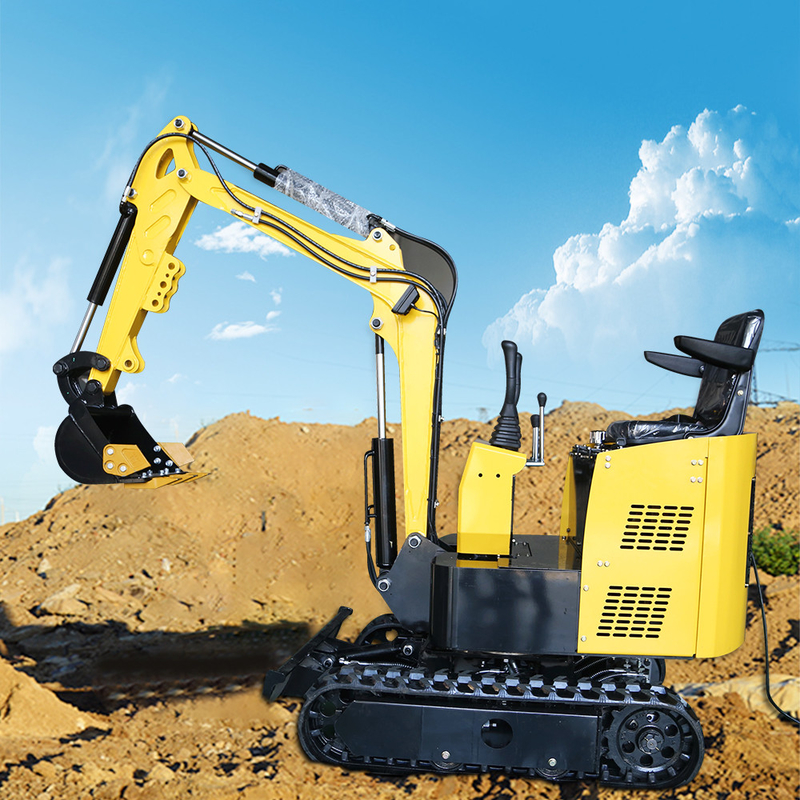

Introducing the Electric Mini Excavator, a cutting-edge and environmentally friendly construction machine designed for efficient and sustainable digging and excavation tasks. Powered by electricity, this mini excavator offers numerous advantages over traditional fuel-powered counterparts.
The Electric Mini Excavator boasts zero emissions during operation, contributing to a cleaner and greener working environment. It reduces noise pollution, making it suitable for noise-sensitive areas such as residential neighborhoods or urban construction sites.
| Work Quality: | 0.85t |
| Engine Brand: | Kepu |
| Emission Standard: | National II |
| Fuel Tank Volume: | 5L |
| Main Pump Displacement: | 6.5mL/r |
| Hydraulic Tank Volume: | 13L |
| Working Pressure: | 16MPa |
| Dimensions | |
| Length: | 2770mm |
| Width: | 920mn |
| Height: | 520m |
| Wheelbase: | 915mm |
| Platform Ground Clearance: | 370mm |
| Track Width: | 180mm |
| Track Height: | 320mm |
| Shipping Length: | 2810mm |
| Maximum Lifting Height Of Bulldozer; | 315mm |
| Bulldozer Maximum Cleaning Depth: | 265mm |
| Working Parameters | |
| Maximum Excavation Height: | 2620mm |
| Maximum Unloading Height: | 1820mm |
| Maximum Excavation Depth: | 1675mm |
| Maximum Excavation Radius: | 2945mm |
| Excavator Arm Force: | 4kn |
| Bucket Digging Force: | 6kn |
| Maximum Digging Capacity: | 7kn |
| Bucket Capacity: | 0.025m |
| Walking Speed: | 2.5km/h |
| Gradeability: | 30° |
| Minimum Tuning Radius Of Tail: | 1300mm |
