Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE，EPA，ISO，TUV
Model Number:
ZM30
Contact Us

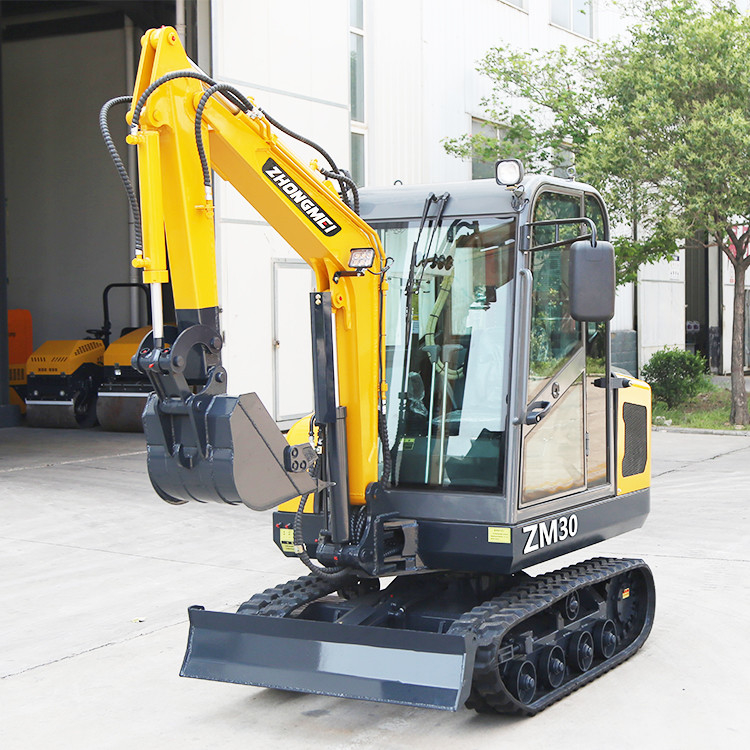

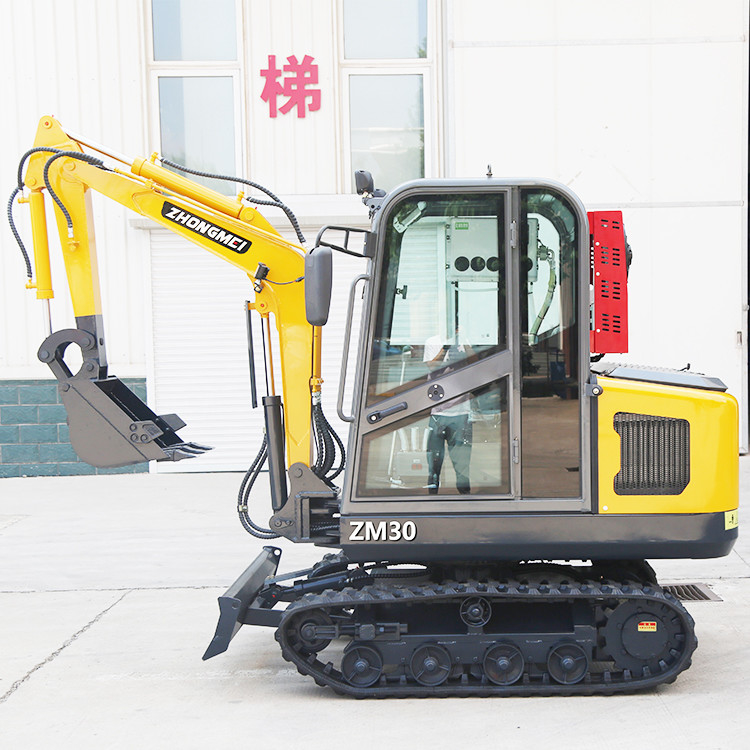

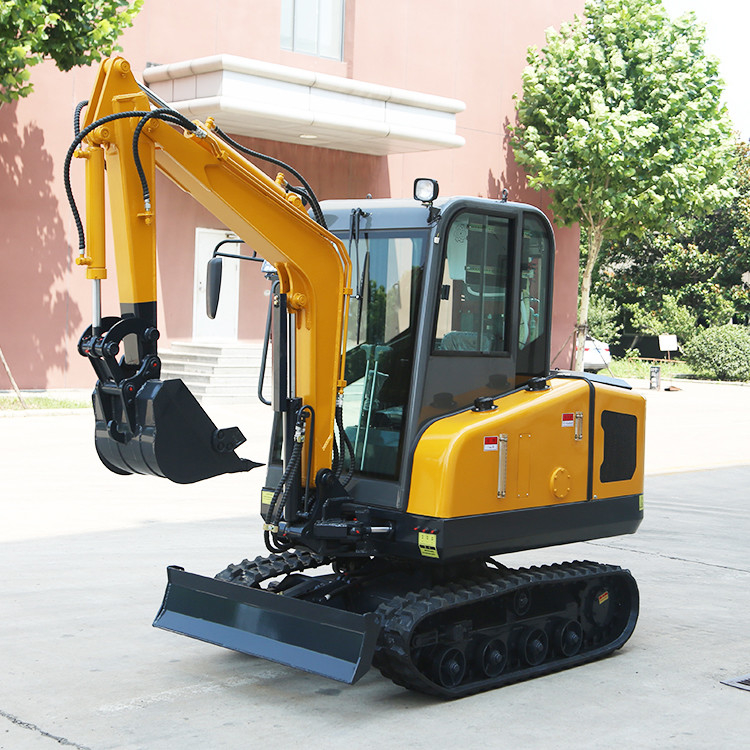

Introducing our Small Excavator - the perfect solution for your digging needs. With a working weight of 2500 Kg and a compact design, this excavator is highly maneuverable, making it ideal for tight spaces. Its 0.1m³ bucket capacity ensures efficient digging, while the 22.1KW (National II) engine provides reliable power at a rated speed of 2200 r/min.
Equipped with a robust hydraulic system with a pressure of 16MPa, our excavator can handle tough tasks with ease. Its impressive climbing degree of 30° allows it to navigate challenging terrains effortlessly. The 23×10³ N/m² grounding pressure ensures stability during operation.
| Parameter | Value |
| Working weight | 2500 Kg |
| Bucket capacity | 0.1 m³ |
| Engine power | 22.1 KW (National II) |
| Engine rated speed | 2200 r/min |
| Hydraulic system pressure | 16 MPa |
| Climbing degree | 30° |
| Grounding pressure | 23×10³ N/m² |
| Traveling speed | 2 Km/h |
| Max. traction force | 11.5 KN |
| Platform rotation speed | 10 r/min |
| Dimension | |
| Total length (A) | 4200 mm |
| Total width (B) | 1300 mm |
| Total height (C) | 2300 mm |
| Platform turning radius (D) | 1250 mm |
| Track length (E) | 1900 mm |
| Height above ground (F) | 260 mm |
| Movable arm end height (G) | 960 mm |
| Platform outer width (H) | 1060 mm |
| Engine cover height (I) | 1390 mm |
| Platform height above ground (J) | 810 mm |
| Track width (K) | 230 mm |
| Operating range | |
| Max. digging height (A) | 3200 mm |
| Max. unloading height (B) | 2450 mm |
| Max. digging depth (C) | 2350 mm |
| Max. digging radius (D) | 4200 mm |
| Max. ground level digging distance (D1) | 3100 mm |
| Max. digging height of digging radius (E) | 3800 mm |
| Min. turning radius (F) | 2300 mm |
| Max. bucket depth of bulldozing shovel (G) | 150 mm |
| Max. lifting height of bulldozer (H) | 210 mm |
