Place of Origin:
shandong
Brand Name:
ZHONGMEI
Certification:
CE,EPA,ISO,TUV
Model Number:
ZM25
Contact Us

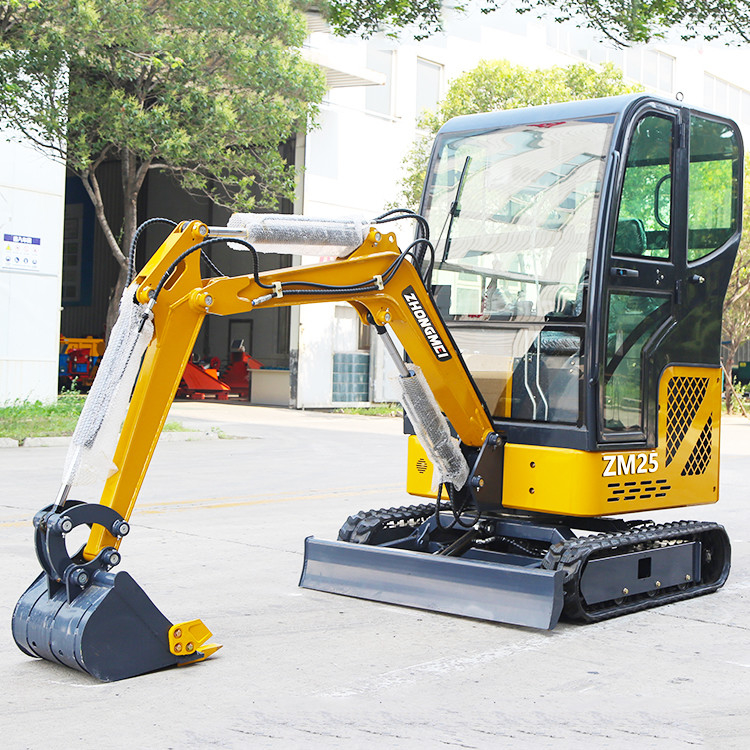

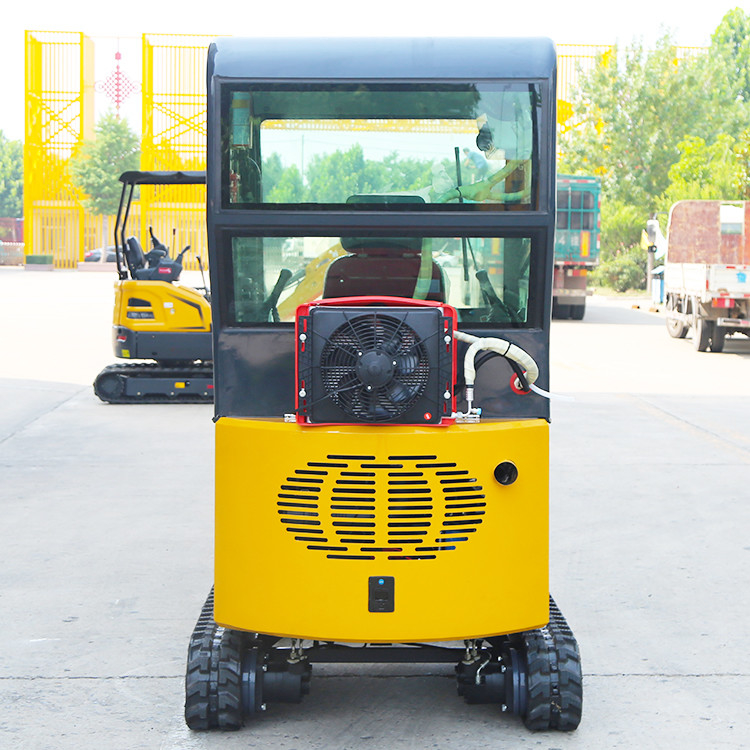

The 2.5-ton mini excavator is a versatile and efficient construction machine. With a compact design and a weight of 2.5 tons, it offers excellent maneuverability and ease of transportation. Equipped with a 22.1 kW (Euro II) engine and a hydraulic system pressure of 16 MPa, it delivers reliable power for various digging and excavation tasks. Its maximum digging depth of 2350 mm and digging radius of 4200 mm make it ideal for small to medium-scale projects. The mini excavator excels in tight spaces and is suitable for urban construction sites, landscaping, and utility installations. Its low ground pressure and 30° climbing ability ensure superior performance on various terrains. Whether in residential areas or confined job sites, the 2.5-ton mini excavator offers exceptional productivity and versatility, making it an ideal choice for contractors and operators seeking efficient and precise digging capabilities.
Parameter | Value | Unit |
Total Weight | 2500 | Kg |
Bucket Capacity | 0.1 | m³ |
Engine Power | 22.1 | KW |
Rated Engine Speed | 2200 | r/min |
Hydraulic System Pressure | 16 | MPa |
Gradient | 30 | ° |
Ground Pressure | 23×10³ | N/m² |
Travel Speed | 2 | Km/h |
Maximum Traction Force | 11.5 | KN |
Platform Rotation Speed | 10 | r/min |
Dimensions | mm | |
A - Overall Length | 4200 | |
B - Overall Width | 1300 | |
C - Overall Height | 2300 | |
D - Platform Rotation Radius | 1250 | |
E - Track Length | 1900 | |
F - Ground Clearance | 260 | |
G - Arm End Height | 960 | |
H - Platform Outer Width | 1060 | |
I - Engine Hood Height | 1390 | |
J - Platform Ground Clearance | 810 | |
K - Track Width | 230 | |
Working Range | mm | |
A - Maximum Digging Height | 3200 | |
B - Maximum Dumping Height | 2450 | |
C - Maximum Digging Depth | 2350 | |
D - Maximum Digging Radius | 4200 | |
D1 - Maximum Horizontal Digging Distance | 3100 | |
E - Digging Radius at Maximum Digging Height | 3800 | |
F - Minimum Turning Radius | 2300 | |
G - Maximum Blade Digging Depth | 150 | |
H - Maximum Blade Lifting Height | 210 |
