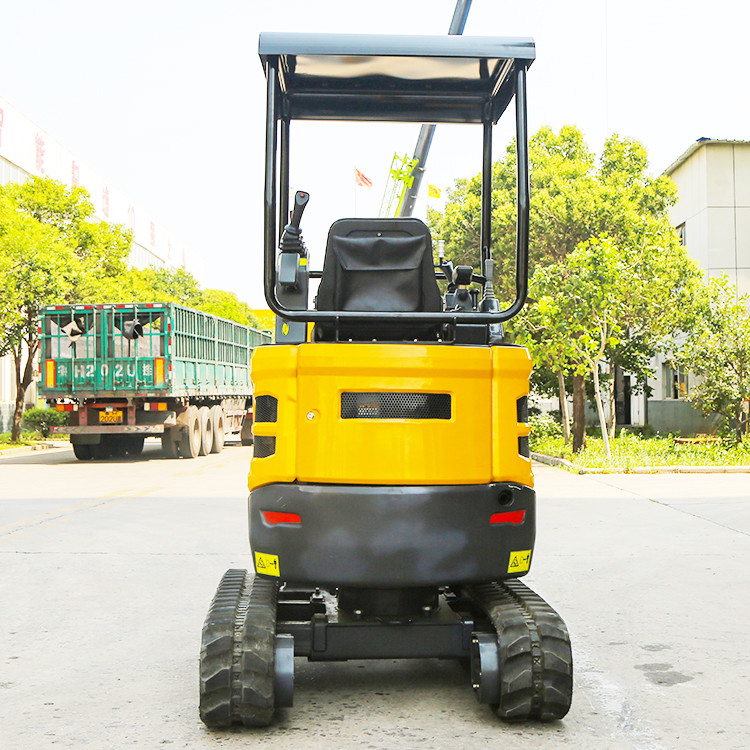

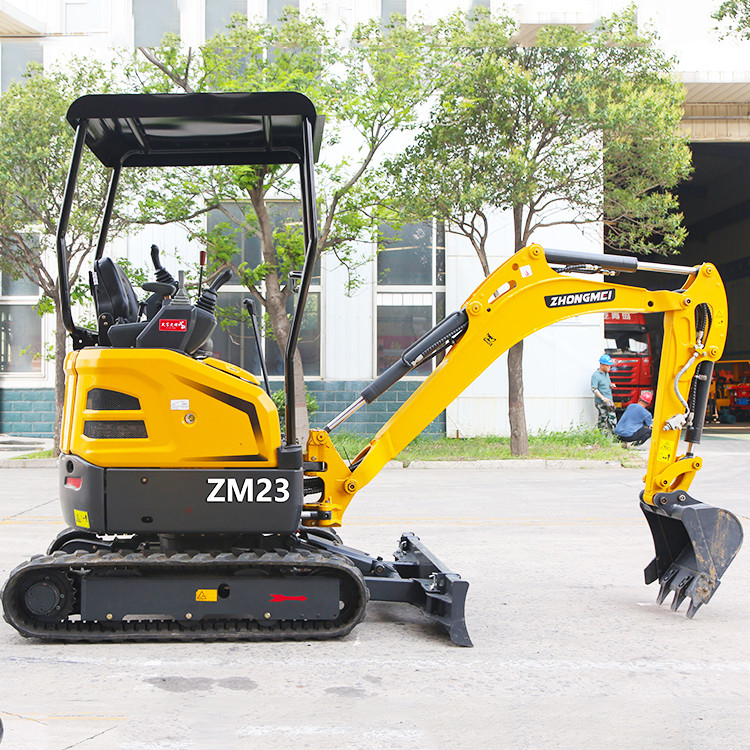

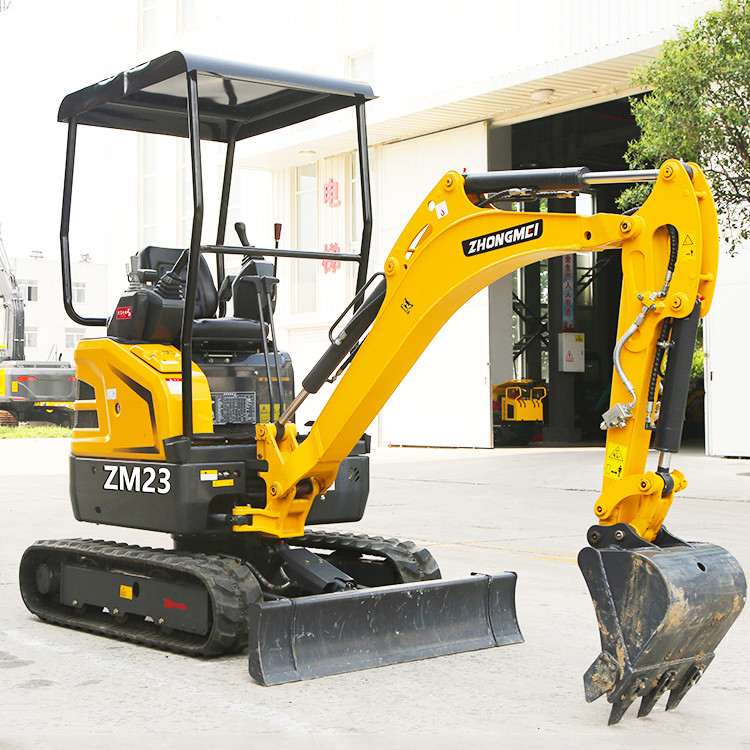

The 2.3-ton mini excavator is ideal for a range of applications, including residential construction, landscaping, utility installations, and renovation projects. Its versatility and ease of operation make it a valuable asset for contractors, landscapers, and operators who require efficient and precise digging capabilities in confined spaces.
Whether it's digging trenches, excavating foundations, or completing site preparations, the 2.3-ton mini excavator provides the power, maneuverability, and reliability needed to tackle various tasks with ease.
Dimensions | |
transport length | 3575mm |
transport height | 2405mm |
transport width | 990mm |
track length | 1593mm |
wheelbase | 1230mm |
The scope of work | |
digging height | 3535mm |
unloading height | 2445mm |
digging depth | 2270mm |
Maximum Vertical Digging Depth | 1910mm |
digging radius | 3910mm |
Maximum digging radius at ground level | 3845mm |
Bulldozer blade maximum lifting height | 280mm |
Maximum cutting depth of bulldozing blade | 190mm |
engine | |
model | Kubota D902 |
form | Three-cylinder direct injection |
Displacement | 0.898L |
rated power | 11.8KW/2300rpm |
Hydraulic system | |
form | load sensitive |
Rated working flow | 64.4L/min |
walking system | |
Number of rollers | 3x2 |
Walking speed | 0~2.2~4.3km/h |
traction | 18KN |
Gradeability | 58% |
Ground clearance | 145mm |
bucket | |
Bucket capacity | 0.04m³ |
Bucket Digging Force | 16KN |
Stick Digging Force | 9.5KN |
Machine weight, slewing system | |
Total Weight | 1800kg |
Ground specific pressure | 29KPa |
Swing speed | 9.5r/min |
Oil capacity | |
fuel tank capacity | 19L |
cooling system | 5.05L |
engine oil volume | 3.7L |
Hydraulic tank | 13.7L/21.4L |
